Product Details:
|
| Product Name: | 4G LTE Wifi Wireless Router | Warranty: | 1 Year /12 Months |
|---|---|---|---|
| Battery: | 2100mah | Wireless: | DL 150Mbps/UpLoad 50Mbps |
| User: | 10 Wifi Users | Frequancy Band: | B1/3/5/8/38/40/41 |
| Color: | White With Screen | Support: | OEM |
| High Light: | OLAX MF980L 4G Wireless Routers,4g Hotspot WiFi Router 802.11b,ROHS 4g pocket wifi router |
||
4g Hotspot WiFi Router Internet Pocket Wireless With Screen OLAX MF980L
Product Description
Before making the order ,please check the frequency of your sim card whether it can work in our router
4G/FDD:B1/B3/B5/B8/
4GTDD:B38/B39/B40/B41
3G WCDMA:B1/B8(2100/900MHZ)
Usage steps:
1. Open the back cover and put in the correct SIM card
2. Check the password and login URL on the back of the machine, cover the case, and then turn on the machine
3. Enter the background 192.168.0.1, you can change the password
Note: If you modify the password, please do remember the modified password.
The package contains the following contents:
1*4g device
1*lithium battery
1*cable
1*English user manuals
OLAX MF980L Hotspot wifi router
| Model Number | MF980L | Remarks |
| The processor | Cat4 ZX297520V3 | |
| spectrum | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B12/B13/B17/B66 | |
| TDD LTE: B38/B39/B40/B41 | ||
| TD-SCDMA: B34/B39 | ||
| WCDMA: B1/B5/B8 | ||
| Peak rate | LTE download:100.8Mbps, upload:51.0Mbps (Category 4) | |
| TD-SCDMA download:4.2Mbps, upload: 2.2Mbps | ||
| WCDMA download:42Mbps, upload: 5.76Mbps | ||
| The keys | The power button | |
| The WPS switch button | ||
| Restore the factory button (pinhole) | ||
| TF card | Upward compatible to 32 gb | |
| WIFI | Support 802.11 b/g/n | |
| The battery | 2100 mah lithium battery | |
| interface | MicroUSB interface | |
| Standard USIM interface | ||
| MicroSD interface | ||
| The adapter | The input voltage:100V~240V,50Hz~60Hz | |
| The output voltage:5V DC±10% | ||
| The output current:1A | ||
| Charging interface | Micro 5pin | |
| Working temperature | -10°C to 60°C | |
| Working humidity | 5% - 65% | |
| Storage temperature | -30°C to 80°C | |
| Store humidity | 5% to 95% | |
| Software information | ||
| The operating system | Win7, Windows XP, Vista, Mac OS | |
| language | Chinese/English | Support multiple languages |
| Shared) | Up to 10 users | |
| Set up the) | support | |
| SMS | Support mobile and Unicom conventional card receiving and sending, telecommunication cards do not support | |
| The phone book | support | The phone book/APN/ WIFI /Device /Routing/Firewall Settings |
| size | 59x98x15.5 mm | 98mmX58.5mmX15mm(For reference only) |
| The weight of the | 86.04g | |
| The standby time | Can reach more than 50 hours | Ultimately decided by the battery |
| Work hours | Can reach more than 7 hours | Ultimately decided by the battery |

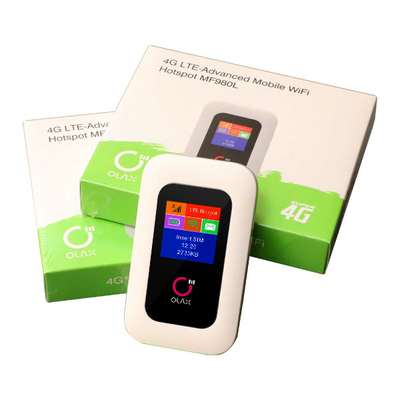

Images of Product:
