Product Details:
|
| Product Name: | 5G LTE Wifi Wireless Router | Warranty: | 1 Year /12 Months |
|---|---|---|---|
| Application: | Utilities | User: | 32 WiFi Users |
| Power Supply Parameters: | 12V2A | Color: | White |
| Usage: | Hotspot Outdoor+indoor | SIM Card Slot: | 1 SIM Card Slot |
| High Light: | 802.11ac 5G Wifi Dongle,802.11b 5G Wireless Router,OLAX NX2100 5g wifi modem |
||
5G Wireless Router Customer Premises Equipment Mobile WiFi Hotspot OLAX NX2100
Product descriptions
Before making the order ,please check the frequency of your sim card whether it can work in our router
Signal indicators:
1. the light 5G only, representing a 5G SA mode.
2. if 4G and 5G are both lit, it means 5G NSA mode.
3. If 4G light is on, it is connected to 4G network.
Features
1. It is very easy to use, plug in the card, connect the power, connect the issued wireless signal can be, support 2.5 / 5G wireless.
2. Support for frequency locking: in the case of poor signal, locking the band can bring an increase in network speed.
3. Application scenarios: support multi-user, large rate, stable access to different locations, etc., to meet the needs of retail stores, small and medium-sized enterprises and personal Internet office
Introduction
NX2100 is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and 802.11b/g/n/ac dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.

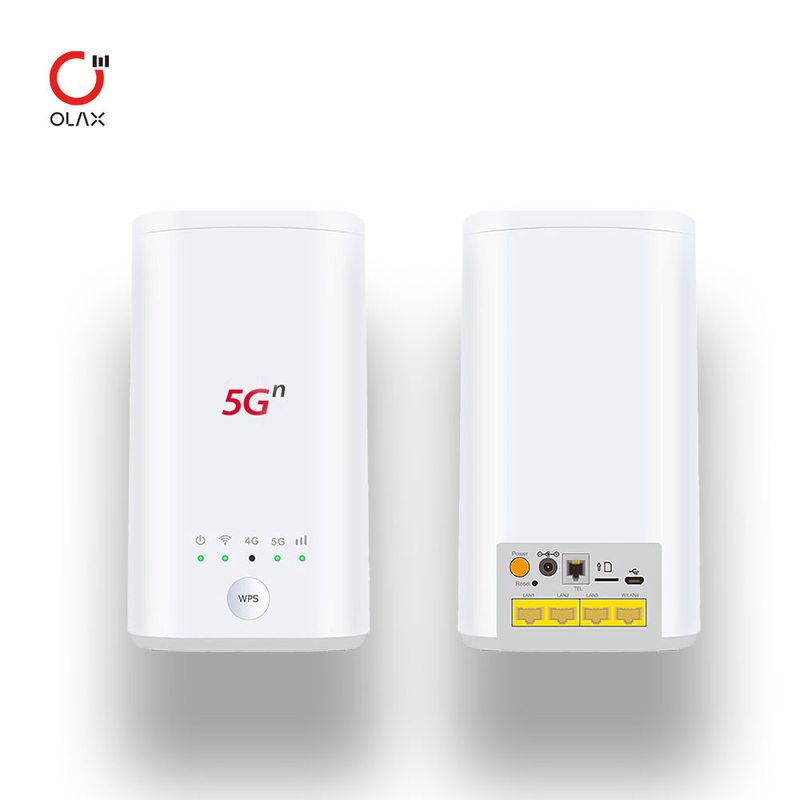

Front signal indicator: power, wireless, 4G, 5G, signal indicator, and a WPS button.
Back interface: power switch, DC power connector, SIM card slot, Type-C interface, reset button, 4 Gigabit network ports, all LAN ports, so it can only be used as a plug-in router
| Feature | Capability |
| Support Bands | 5G NR: N1/N3/N8/N28/N41/N77/N78/N79 |
| 4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ | |
| B28B, B32 can be customized; | |
| 4G TDD: | |
| B34/B38/B39/B40/B41 | |
| ENDC | B3/B7/B8/B20-N1 |
| B1/B20-N3 | |
| B1/B7-N8 | |
| B1/B3-N28 | |
| B3/B39-N41 | |
| B1/B3-N77 | |
| B1/B3/B5/B7/B8/B20/B28-N78 | |
| B3/B39/B40-N79 | |
| 3CC | CA Combination (CA Maximum Aggregated Bandwidth, MHz) |
| B40+B40+B40(50) | |
| B41+B41+B41(60) | |
| B39+B39+B41(50) | |
| B39+B41+B41(60) | |
| B1+B3+B3/B5/B8/B20/B28(50) | |
| B1+B3+B7/B32(60) | |
| B1+B7+B8/B20(50) | |
| B1+B8+B20(45) | |
| B1+B20+B32(50) | |
| B3+B3+B7/B8(50) | |
| B3+B3+B20(40) | |
| B3+B7+B20/B28(50) | |
| B3+B7+B7(60) | |
| B3+B8+B20(45) | |
| B3+B20+B32(50) | |
| B7+B7+B20(50) | |
| CA | 2CC DL intra-band contiguous: 38C, 39C, 40C, 41C, 3C |
| (Inter/Intra 2CA) | 2CC DL inter-band: |
| 39A-41A, 41A-39A, 3A-41A, 8A-41A, 1A-3A, 3A-1A | |
| 2CC UL intra-band contiguous: 38C, 39C, 40C, 41C, 3C | |
| MIMO | 5G DL MIMO 4*4, UL MIMO 1*1 |
| LTE: MIMO 2*2 | |
| WIFI: | |
| MIMO 2*2(5G) | |
| MIMO 2*2(2.4G) | |
| 5G/4G TX/RX | 2T4R/1T2R |
| Output Power@25℃ | 5G NR: 23+-2dBm |
| LTE: 23+-2dBm | |
| 5G/4G Antenna | 4 Built-in 5G antennas |
| 2 Built-in 4G antennas | |
| 5G/4G Antenna Gain | 5 dB |
| Wi-Fi Frequency | 2.4GHz/5GHz |
| Wi-Fi Antenna | 2 Built-in 2.4G Wi-Fi antennas |
| 2 Built-in 5G Wi-Fi antennas | |
| Wi-Fi Output Power | 16 dBm/2.4G; 18 dBm/5G; |
| Wi-Fi Channel BW | 20MHz,40MHz,80MHz(ac) |
| Wi-Fi Antenna Gain | 4 dB |
| Peak Throughput | 5G NR: 1Gbps (UL), 2Gbps (DL) |
Product pictures
