Product Details
Place of Origin: Guangdong
Brand Name: OLAX
Certification: CE
Model Number: Outdoor CPE-O2
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 15-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
1*2.5 GE LAN Port: |
PoE IEEE 802.3AT. |
Bands/CA: |
5G NR: N40, N41, N78, N79, Etc.; 4G LTE: B1,B3,B7,B20,B28,B38,B40,B41,B42,B43; ENDC: Support Most Of The Main Combination. To Be Discussed |
Modulation: |
Sub-6 UL: 256QAM, DL: 256QAM LTE DL:1024QAM, UL:256QAM |
1x LAN Port: |
2.5GE Support PoE IEEE 802.3AT. |
USB Port: |
USB3.0 Type-C (for Debugging Purpose). |
ROM/RAM: |
4Gbits ROM And 4Gbits RAM |
1*2.5 GE LAN Port: |
PoE IEEE 802.3AT. |
Bands/CA: |
5G NR: N40, N41, N78, N79, Etc.; 4G LTE: B1,B3,B7,B20,B28,B38,B40,B41,B42,B43; ENDC: Support Most Of The Main Combination. To Be Discussed |
Modulation: |
Sub-6 UL: 256QAM, DL: 256QAM LTE DL:1024QAM, UL:256QAM |
1x LAN Port: |
2.5GE Support PoE IEEE 802.3AT. |
USB Port: |
USB3.0 Type-C (for Debugging Purpose). |
ROM/RAM: |
4Gbits ROM And 4Gbits RAM |

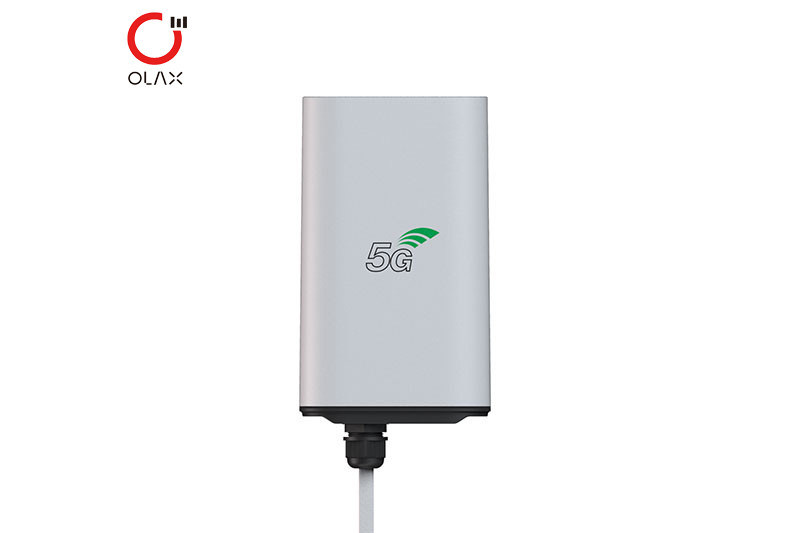

Olax O2
5G Outdoor CPE Router
**Your All-Weather Internet Companion:*
Meet the OLAX Waterproof 4G/5G Device, designed to provide you with reliable internet access in any condition.
Perfect for outdoor enthusiasts, construction sites, and anyone needing robust connectivity in challenging environments.
**4G/5G Dual Network Support:**
Future-proof your connectivity with support for both 4G and 5G networks. Experience ultra-fast internet speeds and stay ahead of the curve with the latest mobile technology.
**IP68 Waterproof Rating:**
Designed to withstand the elements, the OLAX device boasts an IP68 rating, ensuring it remains functional even when exposed to water and dust. Ideal for use in harsh conditions.
**Rugged and Durable Construction:**
Built to last, the rugged exterior of the OLAX device can withstand drops, impacts, and the rigors of daily use, making it a reliable choice for tough environments.
**Multiple Device Support:**
Share your connection with multiple devices simultaneously.
Connect your smartphone, tablet, laptop, and more, ensuring everyone and everything stays connected.
**Long-Range Antenna:**
The high-gain antenna provides extended coverage, ensuring a strong and stable signal even in areas with less-than-ideal reception.
**Intuitive Interface:**
Manage your device with ease through the user-friendly interface. Monitor data usage, control connected devices, and customize settings to suit your needs.
**Advanced Security Features:**
Protect your data with robust security features, including WPA/WPA2 encryption, ensuring your connection is secure from unauthorized access.
**What You Get:**
OLAX Waterproof 4G/5G Device, power adapter, user manual, and our commitment to quality and customer satisfaction.
**Stay Connected, No Matter the Conditions:**
Don't let the weather or environment limit your connectivity. With the OLAX Waterproof 4G/5G Device, you have a powerful, reliable solution for all-weather internet access.
OLAX - 5G Outdoor CPE provides outdoor installation, it makes easier receiving 5G/4G signal even in rural regions where cellular signal is weak.
Built with Qualcomm Snapdragon X55.
- 3GPP Release 15 compliance.
- 5G NSA/SA network.
- 5G/4G multi-mode, allows to use 4G as an alternative connection.
Built-in high gain antennas.
-4 x 4 MIMO downlink and 2 x 2 MIMO uplink.
-4 omni-directional antennas for 360° Signal reception.
-2 enhanced directional antennas on NR high bands including N40/N41/N77/N78/N79 for better quality of 5G network.
Interfaces.
-1 2.5GE LAN port.
-1 Micro Sim slot.
-1 Reset Key.
-1 USB Type-C port.
-5 LED Indicators.
| Indicators | Status | Description | |
| Signal | OFF | No service available. | |
| ON | Three LEDs on |
Signal strength is excellent. RSRP>= -100dB and RSRQ >= -17dB |
|
| Two LEDs on |
Signal strength is good. -125dB < RSRP < -100dB or RSRP>=-100dB and RSRQ < -17dB |
||
| One LEDs on |
Signal strength is Poor. RSRP <= -125dB. |
||
| Network | Green | 5G connected | |
| Blue | 4G connected | ||
| Red blinking | No Sim or No service | ||
| Power | OFF | Power off | |
| Green | Power On | ||
| Blue blinking | Pre-heating going on. | ||
Power Supply.
-Passive PoE: DC 48V/0.5A
-AC/DC Power supply: AC 100V-240V
Outdoor installation.
-IP65 dust and waterproof.
-6KV Lightning protection.
-Supports wall-mounted and pole-mounted installation.
- -20 - 60°C operation temperature, support preheating mechanism in low temperature environment.
-Horizontal Tilt: ±50 degrees.
-Compact size of 225x130x45mm.
| Item | Description |
| Support 5G Sub-6G and able to fall back to 4G |
- 3GPP Release 15 compliance. - 5G NSA /SA network. - 5G/4G multi-mode, allows to use 4G as an alternative connection. |
| Build-in High Gain antennas |
- 4x4 DL MIMO and 2x2 UL MIMO. - 4 omni-directional antennas for 360° Signal reception enables easier installation. - 2 enhanced directional antennas for NR high bands N40/N41/N77/N78/N79. |
| BLE 5 |
- Configuration over BLE. - To find the best signal spot by using APP assistant. |
| 1*2.5 GE LAN Port | PoE IEEE 802.3AT. |
| Outdoor Installation |
- IP65 Dust and Waterproof. - Operating Temperature range -20 to 60°C. Support pre-heating mechanism in low temperature before bringing up the device. - Horizontal Tilt: ±50 degrees. - 6KV lightning protection. - Support wall mounting and pole mounting. |
| Outdoor Installation |
- IP65 Dust and Waterproof. - Operating Temperature range -20 to 60°C. Support pre-heating mechanism in low temperature before bringing up the device. - Horizontal Tilt: ±50 degrees. - 6KV lightning protection. - Support wall mounting and pole mounting. |
| Remote Device Management |
- TR069. - LWM2M for device monitoring purpose while debugging and diagnostics. - FOTA. |
| Security Platform |
- Secure boot to ensure that only authorized software is executed. - Prevent any unauthorized or maliciously modified software from running on the device. |
| Home FWA solution and it also can be used for business cases | It is a perfect home FWA, more than that it also can be used for catering enterprise/industrial needs. |
Hardware Specifications
| Item | Description | ||
| Technical Standard | Cellular | 3GPP Release 15 | |
| Bluetooth | BLE 5 | ||
| Chipset | Qualcomm Snapdragon X55 | ||
| Nordic nRF52833 | |||
| ROM/RAM | 4Gbits ROM and 4Gbits RAM | ||
| Physical Interfaces | 1x LAN Port | 2.5GE Support PoE IEEE 802.3AT. | |
| 1x Sim Slot |
1x Micro Sim slot. 1x M2FF Embedded Sim. |
||
| 1x USB Port | USB3.0 Type-C (for debugging purpose). | ||
| 1x Rest Key | For Hardware resetting. | ||
|
5x LED Indicators |
|
||
| Antennas | 4x omni-directional antennas | For 360° Signal reception enables easier installation. They are with up to 5dBi Gain. | |
| 2x directional antennas | For enhancement on 5G Sub-6 Bands of N40/N41/N77/N78/N79 with up to 9dBi gain. | ||
| 1x BLE | For BLE antenna. | ||
| Cellular Capability | Mode | NSA and SA | |
| Bands/CA |
5G NR: N40, N41, N78, N79, etc.; 4G LTE: B1,B3,B7,B20,B28,B38,B40,B41,B42,B43; ENDC: Support most of the main combination. To be discussed. |
||
| Modulation |
Sub-6 UL: 256QAM, DL: 256QAM LTE DL:1024QAM, UL:256QAM |
||
| MIMO |
|
||
| Environmental | IP Rating | IP65 Compliant | |
