Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: MT20
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Product size: 13*7*4.3cm Packing size: 30*22*29cm Weight:0.15kg Packing weight: 6KG/CTN Carton: 40pcs/CTN
Delivery Time: 28-35 working days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Frequancy Band: |
B1/3/5/7/8/20/28/38/39/40/41 |
Warranty: |
1 Year /12 Months |
Battery: |
2100mah |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 Wifi Users |
SIM Card Slot: |
1 SIM Card Slot |
Frequancy Band: |
B1/3/5/7/8/20/28/38/39/40/41 |
Warranty: |
1 Year /12 Months |
Battery: |
2100mah |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 Wifi Users |
SIM Card Slot: |
1 SIM Card Slot |
4G Mobile WiFi Router Device Modem Portable Cat4 for Outdoor Indoor OLAX MT20
Product Description
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
MT20 Support:
4G/FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800Mhz)
4GTDD:B38/B39/B40/B41(2600/1900/2300/2500Mhz)
3G WCDMA:B1/B8(2100/900MHZ)
Note:
This version does not support North and South American countries (except Brazil)
MT20 Basic Specifications
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| USB Port | Micro USB 2.0×1 for Charge |
| Power Button | Hold on 3s to power on/off |
| Short press to wake up /Light the LED | |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LED Indicators | Power LED×2(Red & Blue) WLAN LED×1(Blue) |
| SMS LED×1((Blue) | |
| LTE Connection Status LED×2(Red/Blue) | |

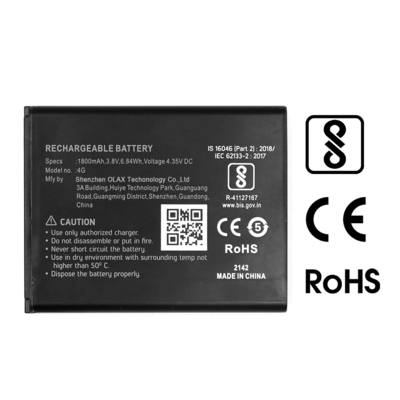

| Battery | 1800mAh/2100mAh(removable) |
| Dimensions | 100mm (H) x 60mm (W) x 14mm (D) |
| Weight | About 100g |
4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands | MT20-E(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8 |
| MT20-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 | |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； |
| WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； | |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power | LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； |
| WCDMA:24dBm+1dB/-3dB； | |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
| Item | Description |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps |
| 802.11g:54Mbps | |
| 802.11n:150Mbps | |
| Modulation | DSSS/CCK,OFDM |
| Receive Sensitivity | -82dBm in 802.11b |
| -72dBm in 802.11g | |
| -62dBm in 802.11n | |
| MAX Output Power | 17dBm in 802.11b |
| 15dBm in 802.11g 14dBm in 802.11n | |
| Antenna Type | Internal Antenna |
What is in the box:
1*4G Router /1* 2100mah Battery /1*USB Cable /1*User manuals
