Shenzhen OLAX Technology Co.,Ltd
 |
| Place of Origin: | GUANGDONG |
| Brand Name: | OLAX |
| Certification: | ce.ROHS |
| Model Number: | MF6875 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | 29.8$/pcs |
| Delivery Time: | 7 working day |
| Payment Terms: | D/P, T/T, Western Union, D/A |
| Supply Ability: | 10000pcs/month |
| LTE Standard: | 150 Mbps(DL)/50 Mbps(UL) | Material: | ABS |
|---|---|---|---|
| Chipset: | ZX297520V3E | MicroSD Card: | 1 SD Card Slot/ Maximum 32GB |
| Network: | B1B2B3B4 B5B7B8 B20B39B40B41 | Battery Capacity: | 2600 MAh |
| High Light: | 4G Mobile Wifi Device CPE,OLAX MF6875 4G Sim Slot,RJ45 4g modem with sim card slot |
||

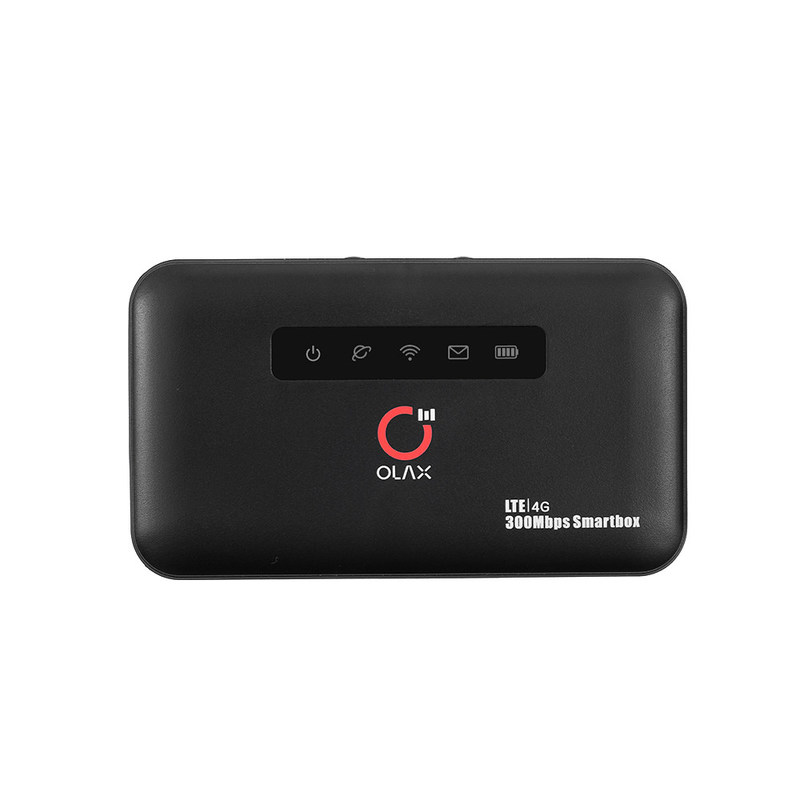

Pocket Mini CPE Router WiFi 4G Sim Slot RJ45 Connect 32 Devices OLAX MF6875
Product Description
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
How to search: Click on the link and enter the name of the country to check
MF6875 frequency band as follow:B1/2/3/4/5/7/8/20/38/39/40/41
Package:
1* 4G Device
1* Battery
1* Cable
1* Manual Users
Hardware Specifications
| Spec | Description |
| Chipset | ZX297520V3E |
| LTE standard | LTE CAT4 |
| 150 Mbps(DL)/50 Mbps(UL) | |
| ROM | 1Gb |
| RAM | DDR2 512Mb |
| LED | 1. Power |
| 2. 4G/3G/2G/WAN Internet | |
| 3. Wi-Fi Switch | |
| 4. Message | |
| 5. Battery | |
| MiFi will enter low consumption mode indicate with Power LED flashing & other LEDs off after unused for 1 minute, please press POWER KEY to wake device up before using. | |
| KEY | POWER On/Off |
| WPS | |
| RESET | |
| Ethernet LAN | 1* Megabit RJ45 LAN Port |
| 10/100 auto-sensing, | |
| it can be set to WAN | |
| SIM | Micro SIM, Support 1.8v & 3.3v |
| MicroSD Card | 1 SD Card Slot |
| Maximum 32GB | |
| Power Consumption | < 12W |
| Power Supply | AC100V~240V, 50Hz~60Hz |
| DC 5V/1A. | |
| Battery | LI-battery 3.7V/2600mAh |
| Battery Passthrough | MiFi will be powered by adapter while battery is not connected. |
| It will be powered by battery only if power adapter is not connected. | |
| If both of battery and adapter are connected, MiFi will be powered by adapter. It is helpful to protect battery. | |
| Weight | 300g |
| Feature | Capability |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -20°C~70°C |
| Operating humidity | 95% Maxton-condensing |
| Storage humidity | 95% Maxton-condensing |
Introduction
OLAX MF6875 is a high-performance wireless communication product developed by Shenzhen Wanwei Yulian Technology based on 4G network requirements. It is mainly used for data transmission services, equipment monitoring, wireless routing and other functions. Olax MF6875 adopts high-performance processor, which can process protocol and large amount of data at high speed. It can be used with a variety of 4G CAT4 module, providing 802.11b/g/n Wi-Fi access.
