Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Model Number: 900/1800/2100
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 7-15 working day
Payment Terms: T/T
Supply Ability: 10000pcs/month
Application: |
Indoor Signal Coverage |
Type Of Goods: |
In-stock |
Built-in Firewall Or Not: |
Yes |
Coverage Area: |
300-500 Square Meters Signal Coverage |
Product Weight: |
2.5-3kg |
Frequency Range: |
900 1800 2100mhz |
Application: |
Indoor Signal Coverage |
Type Of Goods: |
In-stock |
Built-in Firewall Or Not: |
Yes |
Coverage Area: |
300-500 Square Meters Signal Coverage |
Product Weight: |
2.5-3kg |
Frequency Range: |
900 1800 2100mhz |

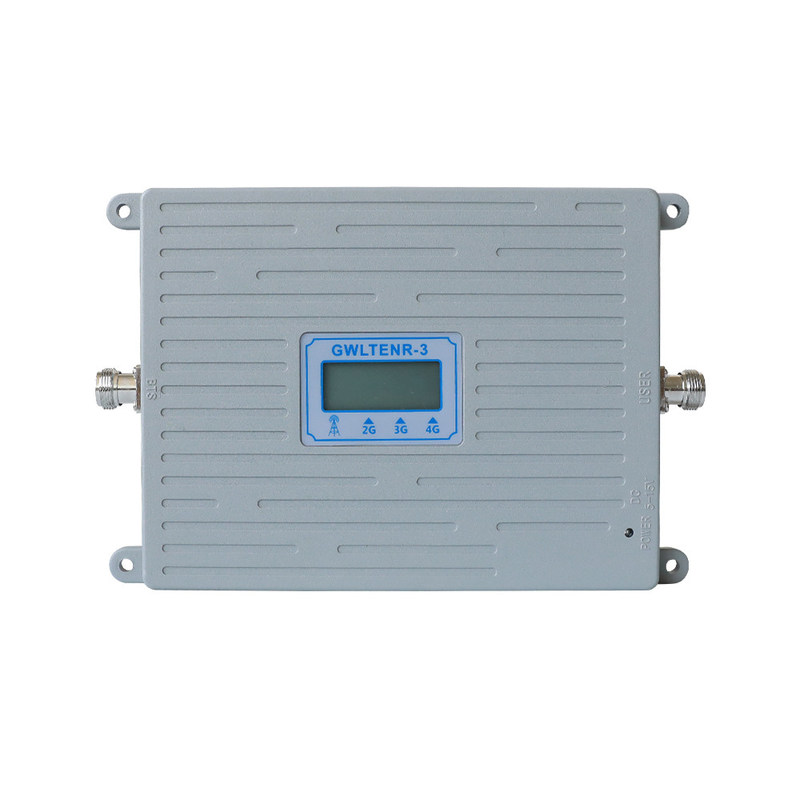

2G 3G 4G Signal Booster Repeater With Antenna 900 1800 2100mhz for Mobile Phone
Product Set
1.outdoor antenna + 10m cable + 5m cable + indoor antenna
2.outdoor antenna + 10M cable + 5M cable +Indoor antenna
3.outdoor antenna + 10M cable + 5M cable + Indoor antenna
4.outdoor antenna + 10M cable + indoor antenan 3m
Setup steps
1. Secure the outdoor antenna on the receiving roof or high and steering signal point.
2. 2. Connect the external antenna to the repeater "BASE STATION" port via cable.
3. 3. Connect the indoor antenna to the repeater "MOBILE" port.
4. Plug the AC plug power cable into the power supply to finish.
5. Hint: The outdoor antenna should be "isolated" from the indoor antenna, i.e. there must be constructive barriers (walls, partitions, etc.) between the antennas
Packing list:
1*outdoor antenna
1*machine host
1*indoor antenna
1*with 5 m line outdoor cable
1*10/20 m power supply
1*instruction manual
Specification
| Frequency (MHz) | Power (dBm)±2 |
Gain (dB)±2 |
Size(cm) | Weight (kg) |
| 850/1800/2100 (B5/3/1) | 20 | 65~70 | 23*19*2 | 0.45 |
| 900/1800/2100 (B8/3/1) | 20 | 65~70 | 0.45 | |
| 900/1800/2600 (B8/3/7) | 20 | 65~70 | 0.45 | |
| 900/2100/2600 (B8/2/7) | 20 | 65~70 | 0.45 | |
| 1800/2100 (B3/1) | 20 | 60~65 | 0.45 | |
| 2100/2600 (B1/7) | 20 | 60~65 | 0.45 | |
| 900/1800 (B8/3) | 20 | 60~65 | 0.45 | |
| 900/2100 (B8/1) | 20 | 60~65 | 0.45 | |
| 850/1800 (B5/3) | 20 | 60~65 | 0.45 | |
| 1700/850/1900 (B28) | 20 | 60~65 | 0.45 | |
| 850/1900 (B5/2) | 20 | 60~65 | 0.45 |
