Product Details
Place of Origin: GUAGNDONG
Brand Name: Olax
Certification: CE, ROHS
Model Number: MF981VS
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 90pcs/carton
Delivery Time: 10000pcs/month
Payment Terms: T/T, Western Union, D/P
Supply Ability: 10000pcs/month
Products Status: |
Stock |
Application: |
MINI WIFI |
Lan Ports: |
Null |
With Modem Function: |
Yes |
2.4g Wi-fi Transmission Rate: |
150 Mbps |
Color: |
White |
Products Status: |
Stock |
Application: |
MINI WIFI |
Lan Ports: |
Null |
With Modem Function: |
Yes |
2.4g Wi-fi Transmission Rate: |
150 Mbps |
Color: |
White |

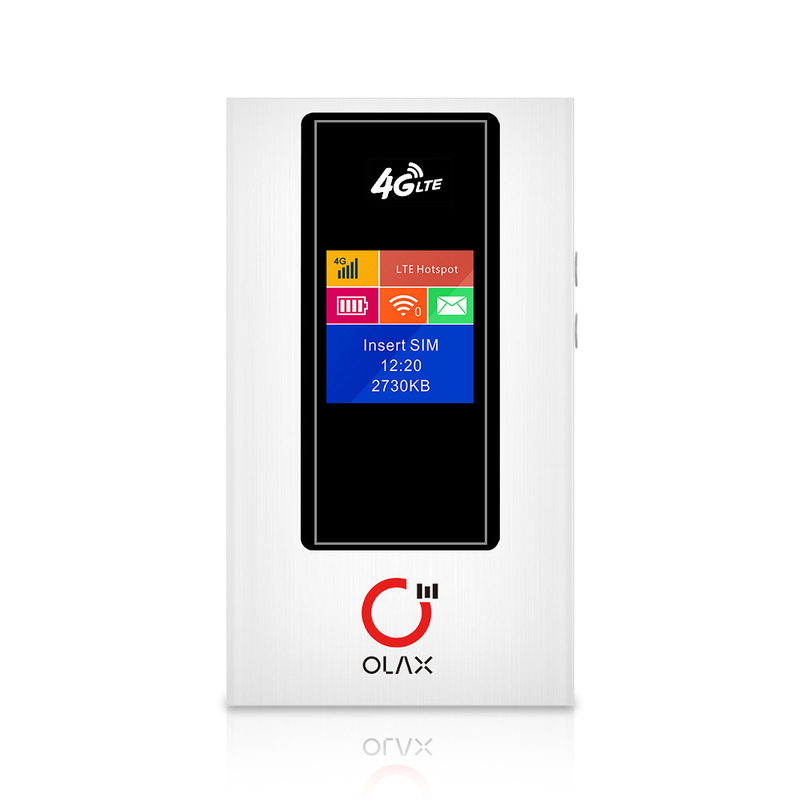

4G Wifi Router Olax 2100mAh MF981VS 4G Wifi Modem With Sim Card Slot 4g Pocket Wifi Router
Product Description
Before order ,please check the frequency of your sim card whether it can work in our router
MF981VS support frequency band as below:
4G/FDD:B1/B3/B5/B7/B8/B20
4GTDD:B38/B40/B41
3G WCDMA:B1/B8
How to use the router ?
1 open the router Cover case ,then pulg in to Micro SIM Card to sim card slot
2.find the wifi list on computor or phone, connect the wifi (Check the label on the device)
3.how to Log in web interface: log in web 192.168.0.1, and see web interface show work Cellular Connection detail including Internet Connection
Network Operator and Cellular Network Mode. if sim card network band not support , it is show no service ,if show sim card name signal but cannot search internet or limited service, it mean that need to revise APN.
OLAX MF981VS 4G wifi router features:
1. 2100mah battery
2. OLAX smart connection
3. IMEI fixed for easy hotspot and BAND locking
4. Openline for all ISP, automatic WiFi sharing
5.With mini dimensions, it is easy to hold, suitable for travel and business trip, etc.
Package Contents:
1*4G WiFi Router
1*Battery
1*USB Cable
1*English User manual
Note:
This version does not support North and South American countries,Brazil is Available
Custom parameter table:
| The processor | Cat4 ZX297520V3 |
| LCD Screen | Optional |
| spectrum | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B12/B13/B17/B66 |
| TDD LTE: B38/B39/B40/B41 | |
| TD-SCDMA: B34/B39 | |
| WCDMA: B1/B5/B8 | |
| Peak rate | LTE download:100.8Mbps, upload:51.0Mbps (Category 4) |
| TD-SCDMA download:4.2Mbps, upload: 2.2Mbps | |
| WCDMA download:42Mbps, upload: 5.76Mbps | |
| The keys | The power button |
| The WPS switch button | |
| Restore the factory button (pinhole) | |
| TF card | Upward compatible to 32 gb |
| WIFI | Support 802.11 b/g/n |
| The battery | 2100 mah lithium battery |
| interface | MicroUSB interface |
| Standard USIM interface | |
| MicroSD interface | |
| The adapter | The input voltage:100V~240V,50Hz~60Hz |
| The output voltage:5V DC±10% | |
| The output current:1A | |
| Charging interface | Micro 5pin |
| Working temperature | -10°C to 60°C |
| Working humidity | 5% - 65% |
| Storage temperature | -30°C to 80°C |
| Store humidity | 5% to 95% |
| Software information | |
| The operating system | Win7, Windows XP, Vista, Mac OS |
| language | Chinese/English |
| Shared) | Up to 10 users |
| Set up the) | support |
| SMS | Support mobile and Unicom conventional card receiving and sending, telecommunication cards do not support |
| The phone book | support |
| size | 59x98x15.5 mm |
| The weight of the | 86.04g |
| The standby time | Can reach more than 50 hours |
| Work hours | Can reach more than 7 hours |
