Home > products > 4G Industrial Router > AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot

AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot

Product Details

Place of Origin: GUANGDONG

Brand Name: OLAX

Certification: ce.ROHS

Model Number: AX5 PRO EU without battery version

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Product size: 20*14.2*8.8 cm Packing size: 30*43*45cm Weight:0.7kg Packing weight: 14KG/CTN Carton: 20pcs/CTN

Delivery Time: 28-35 working days

Payment Terms: T/T

Supply Ability: 10000pcs/month

Get Best Price
Highlight:

AX5 Pro 4G Industrial Router

,

LTE CAT4 indoor wifi router

,

CAT4 4g lte router with sim card slot

Material:
ABS
Battery:
No
Frequency Band:
1/3/5/7/8/20/38/39/40/41
Warranty:
1 Year /12 Months
LTE Standard:
LTE CAT4
LTE Peak Throughput:
DL 150 Mbps, UL 50 Mbps
Material:
ABS
Battery:
No
Frequency Band:
1/3/5/7/8/20/38/39/40/41
Warranty:
1 Year /12 Months
LTE Standard:
LTE CAT4
LTE Peak Throughput:
DL 150 Mbps, UL 50 Mbps
AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot

Indoor Wireless WiFi Router 4g Lte Cpe Network with Sim Slot AX5 Pro Eu Version

Product Description

Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
In the search box, enter the country and click on the search, you can see the band used for the operator

OLAX AX5 Pro 4G WiFi Router supports the following frequency band: 1/3/5/7/8/20/28/38/40/41 Or B2/3/4/5/7/8/13/28ab

Brand: OLAX
Material: All products are made with new materials and chips
Shipping Time: Delivery within 3 days for in-stock, 28-35 working days for customized products
Guarantee: support 12 MONTHS warranty
Appearance color: black Or white

Three versions: AX5 Pro EU with battery version(balck)/AX5 Pro EU without battery version(balck)/AX5 Pro US with battery version(White)
Quality issues: support online after-sales guidance, if necessary, remote computer to check
Battery capacity: With 2000mah battery or without battery version
Performance: cat4, 150mbps, WiFi up to 300mbps, support 32 users.



Package Contents:

1* 4g Wifi Router 1* Adaptor 1* English User Manual 1* Network Cabl



OLAX AX5 Pro is a high-performance wireless communication product developed by Shenzhen wanwei yulian Technology based on 4G network requirements. It is mainly used for data transmission services, equipment monitoring, wireless routing and other functions. OLAX AX5 pro adopts high-performance processor, which can process protocol and large amount of data at high speed. It can be used with a variety of 4G CAT4 module, providing 802.11b/g/n Wi-Fi access.



OLAX AX5 PRO EU WITHOUT BATTERY VERSION

Chipset ZX297520V3E/ ZTE
LTE Standard LTE CAT4
150 Mbps(DL)/50 Mbps(UL)
Memory ROM: 128MB NAND Flash
RAM: 64MB DDR (128MB if Voice required)
Interfaces LAN RJ45 Port (FE) * 4;
RJ11 Port * 1 (Optional);
DC Socket;
Battery Socket (Optional);
SMA Interface * 2;
SIM Slot * 1;
USB Socket (For Manufacture);
Buttons POWER On/Off Button
WPS Button
Wi-Fi Button
RESET Button
Indictors Power/Battery
Wi-Fi Switch
4G/3G/2G Internet
Signal Strength (5 bars)
SIM Micro SIM(3FF)
Support 1.8V & 3.3V
Power Adaptor AC100V~240V,50Hz~60Hz
DC 12V 1A
Battery Rechargeable lithium battery
Capacity: 7.4V/2000mAh
Maximum working hours:
2 (depending on the network)
Maximum standby hours:
6 (depending on the network)
RF
Specifications
Supported Bands LTE TDD: B38/39/40/41
(Band will be customized as per requirement) LTE FDD: B1/2/3/4/5/7/8/20(28)
  HSPA+/HSPA/UMTS:
  B1(2100MHz)/B2(1900MHz) /B5(850MHz)/B9(900MHz)
  GSM: 850MHz/900MHz/1800MHz/1900MHz
LTE MIMO MIMO 2*2(1TX 2RX)
LTE Tx 1 Tx
LTE Output Power@25 23±2 dBm
LTE Antenna 2 Built-in
2 External
LTE Antenna Gain Built-in Antennas: 3 dBi;
External Antennas: 5 dBi;
LTE Peak Throughput DL 150 Mbps, UL 50 Mbps
Wi-Fi Frequency 2.4 GHz
Wi-Fi Output Power 15 dBm/2.4G
Wi-Fi Antenna 2 Build-in Antennas
Wi-Fi Antenna Gain 3 dBi
Wi-Fi Channel BW 20MHz, 40MHz
Wi-Fi MIMO MIMO 2*2 (2T2R)
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Concurrent 32
Users

Pictures

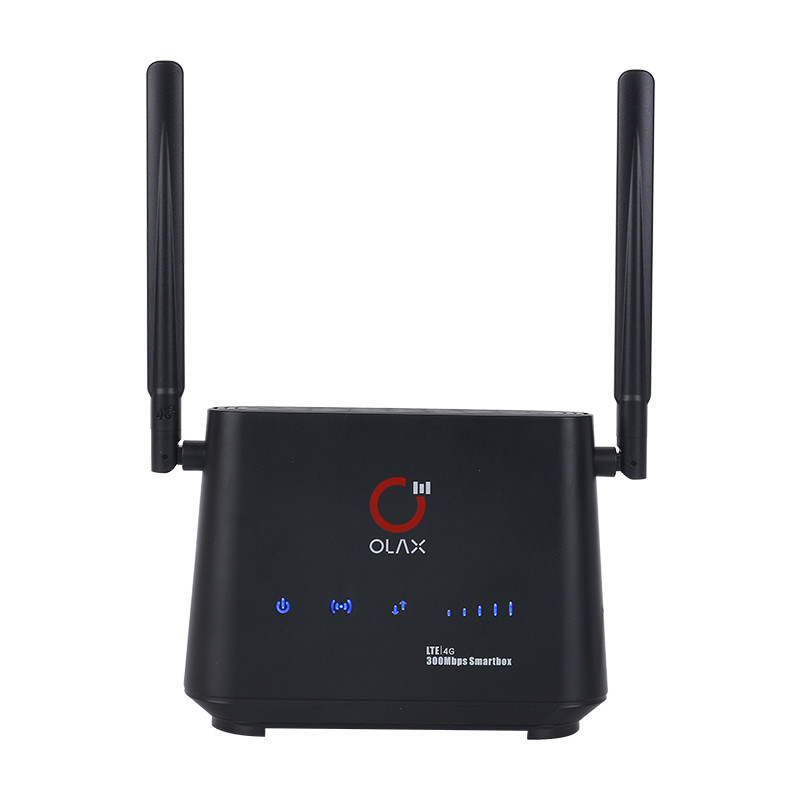

AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot 0AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot 1AX5 Pro 4G Industrial Router LTE CAT4 Indoor Wifi Router With Sim Card Slot 2
