Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: AX6 PRO
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Product size: 23.7*15*5cm Weight:0.55kg Packing weight: 19KG/CTN Carton: 40pcs/CTN
Delivery Time: 28-35 workdays
Payment Terms: T/T
Supply Ability: 10000pcs/month
Material: |
ABS |
Frequency Band: |
B2/3/4/5/7/8/13/28ab |
Battery: |
4000mAh Battery |
WiFi Speed: |
300mbps |
Lan Port: |
1 RJ45 Port |
SIM Card Slot: |
1 Slot |
Material: |
ABS |
Frequency Band: |
B2/3/4/5/7/8/13/28ab |
Battery: |
4000mAh Battery |
WiFi Speed: |
300mbps |
Lan Port: |
1 RJ45 Port |
SIM Card Slot: |
1 Slot |

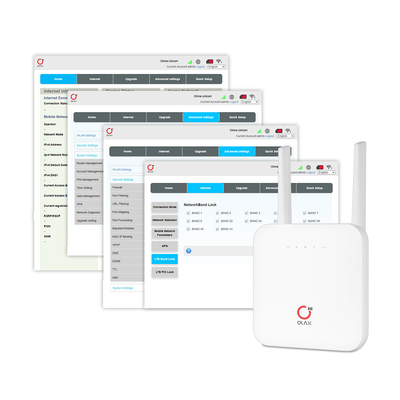

Mobile Hotspot Wireless WiFi Router 192.168.1.1 With Sim Card Slot Band2/3/4/5/7/8/13/28ab for American Reseller
OLAX AX6 PRO US
Features
1.More standby capacity for anytime, anywhere to get internet connection
2.Support 32 devices connect at the same time, phones, tablets and laptops, enjoy fast-speed 4G network anytime, anywhere
3.Cat4 wifi wireless speed up to 300mbps
4.Smart chip, stable and reliable
5.4000mah Li-ion battery:Standby time Multiple hours for normal use
What's inside the box?
1* 4G device
1* Battery
1* Adaptor
1* User manual
1* Internet cable
Product Specifications
| Item | Description |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| Ethernet Port | RJ45×1, LAN, 10/100 auto-sensing, auto-MDX |
| USB Port | USB 2.0 ×1 |
| Battery Cell | 4000mAH Optional |
| Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| WPS Button | WPS Button ×1 |
| LED Indicators | Power LED×1 WPS/WLAN ×1 LAN LED ×1 LTE Internet LED ×1 Signal LED×3 |
| Dimensions | 237mm (H) x 150mm (W) x 50mm (D) |
| Weight | About 550g |
| Item | Description |
| Standard IEEE | 802.11b/g/n |
| Channel Bandwidth | 20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 2T2R |
| MIMO | DL:2X2 |
| Peak Rate | 802.11b:11Mbps 802.11g:54Mbps 802.11n:300Mbps |
| Modulation | DSSS/CCK,OFDM |
| Receive Sensitivity | “-85dBm in 802.11b -70dBm in 802.11g -66dBm in 802.11n |
| MAX Output power | 17dBm in 802.11b 14dBm in 802.11g 13dBm in 802.11n |
| Antenna Type | Internal Antenna / External Antenna |
| Antenna Gain | 1.5~2dBi |
| Active User | 32 |
