Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: OLAX U90
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation of prices
Packaging Details: Product size: 10*3.9*2.8cm Packing size: 23*52*29cm Weight:0.05kg Packing weight: 12KG/CTN Carton: 240pcs/CTN
Delivery Time: 28-35work days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Material: |
ABS |
Color: |
White |
Frequency Band: |
B2/4/7/12/13/28 |
Name: |
USB WIFI DONGLE |
Support: |
OEM |
Warranty: |
1 Year /12 Months |
Material: |
ABS |
Color: |
White |
Frequency Band: |
B2/4/7/12/13/28 |
Name: |
USB WIFI DONGLE |
Support: |
OEM |
Warranty: |
1 Year /12 Months |
150Mbps Wireless Card USB Dongle Hotspot 4G LTE WiFi Modem American Countries Version OLAX U90
Portable 4G LTE Modem USB Dongle Antenna Port for American Countries OLAX U90
Product Description
Before order, please check if the band meets your requirements,The link to check is as follows, you can search by entering the name of the country:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
Features:
1.Good partner for travel in business, with WiFi hotspot, delicate and portable, in business travel, outdoor travel, home, office, etc.
2.Meet 10 devices linked at the same time, cell phones, computers, etc.
3.Suitable for different scenarios, online classes, games, travel, playing games, etc.
How to use:
1. Push the back cover down.
2. Insert the SIM card
3. Plug the USB port into a power source
4. Connect to WiFi, then you can use the Internet
5. Connect to WIFI, open 192.168.0.1 in the browser to enter the background, the background can modify the WIFI name and password
What's in the box:
1*4G wifi
1*English User manual
Note:
1.Not just a 4G USB modem, but also a USB Wi-Fi router.
2.Wireless access works on 3G, 4G and Wi-Fi networks.
Product Specifications
| 2G/3G/4G setup | Network Selection | Manual, Auto | Supported |
| Setup by user | |||
| Interoperability | TDD-LTE & TD-SCDMA,TD-SCDMA & GSM, TDD-LTE & UMTS, FDD-LTE & TD-SCDMA, FDD-LTE $ UMTS, UMTS & GSM | Supported | |
| SMS | SMS over SGs Func at LTE | Supported | |
| SMS's receiving and reading | Supported | ||
| APN setup | APN setup and revise | Supported | |
| PIN Func | PIN:Save, revise, lock,unlock | Supported | |
| DM | CMCC DM | Supported | |
| Modem Func | Conn to PC by USB | Supported | |
| Automatically connect reconstructed | Can automatically reconnect to network after off-network in data using | Supported |
| Power features | working Voltage | Battery voltage:3.5-4.2V |
| Voltage fluctuations | 3.5-4.2V DC | |
| working Current | TBD | |
| Mobile Power Supplier | supported, output 1A | |
| Environmental Characteristics | Operating Temperature | 0℃～+45℃ |
| Extreme working temperature | -20℃～+60℃ | |
| Storage Temperature | -20℃～+25℃ | |
| Relative humidity | 45%～85% | |
| Structure | Weight | TBD |
| I/O | Standard USB Port | |
| Platform | Qualcomm 9200/9215 | |
| LTE SIM | Single | |
| T-Flash Card | supported | |
| Port | LTE SIM | 3GPP 31.101 and 31.102 standard |
| USB | Standard USB Port | |
| Key | / | |
| LED | Supported | |
| PC OS | Win7/WinXP | Supported |
| MAC OS | Supported | |
| Windows8 | Supported | |
| Android | Supported |

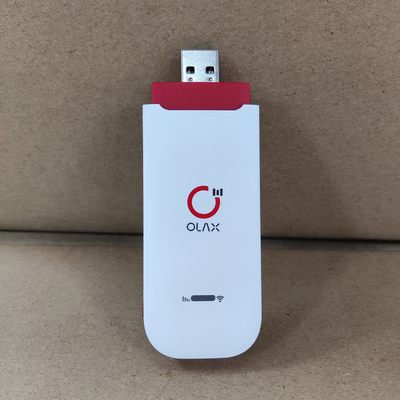

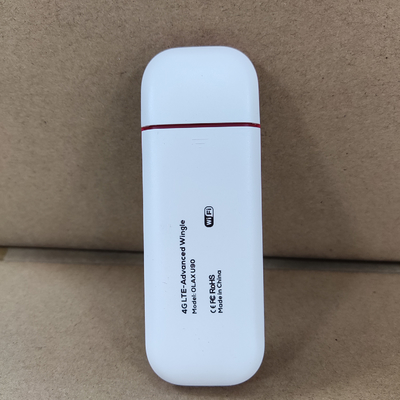

Pictures:
