Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: MF981VS
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Product size: 14*12*3cm Packing size: 37*43*31cm Weight:0.15kg Packing weight: 12.5KG/CTN Carton: 90pcs/CTN
Delivery Time: 28-35 working-days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Usage: |
Hotspot Outdoor And Indoor |
Product Name: |
Pocket Sim Card Router |
Warranty: |
1 Year /12 Months |
Frequency: |
B1/3/5/7/8/20/38/39/40/41 |
Network: |
FDD-LTE TDD-LTE |
Battery: |
2100 Mah Lithium Battery |
Wireless: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 Wifi Users |
Support: |
OEM |
Product Type: |
New |
Usage: |
Hotspot Outdoor And Indoor |
Product Name: |
Pocket Sim Card Router |
Warranty: |
1 Year /12 Months |
Frequency: |
B1/3/5/7/8/20/38/39/40/41 |
Network: |
FDD-LTE TDD-LTE |
Battery: |
2100 Mah Lithium Battery |
Wireless: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 Wifi Users |
Support: |
OEM |
Product Type: |
New |
4g Router No-Contract Mobile Hotspot With Sim Slot For Internet OLAX MF981VS
Please check if the frequency of your SIM card will work on our router before ordering.
OLAX MF981VS SUPPORT 4G/FDD: B1/B3/B5/B7/B8/B20/B38/B40/B41
Note:
This version will not support North and South American countries ( Brazil is not included).
What is the best way to use the router?
1. Turn on the case of the router, then insert the Micro SIM card into the SIM card slot.
2. Locate the wifi list on your computer or phone and connect the wifi (check the sticker on the device).
3. To login to the web interface: login to the web page 192.168.0.1 and see the web interface showing the working cellular connection details, including the Internet connection
If the SIM card network band is not supported, it displays no service.
If it shows that the SIM card has a signal by name, but cannot search the internet or has limited service, it means the APN needs to be modified.
Product Features:
Fast Internet:The downlink rate can reach 150 Mbps and the uplink rate can reach 50 Mbps
10~15 Devices Connections:Supports Wi Fi device connections for all different systems and brands 10-15 devices can be connected at the same time
Transmission Distance: High performance antenna supports long disctance coverage.It can cover 50~100 meters without any obstacle.
Package Contents:
1*4G Router
1* 2100mah Battery
1*USB Cable
1* User manual
| The processor | Cat4 ZX297520V3 |
| LCD Screen | Optional |
| Peak rate | LTE download:100.8Mbps, upload:51.0Mbps (Category 4) |
| TD-SCDMA download:4.2Mbps, upload: 2.2Mbps | |
| WCDMA download:42Mbps, upload: 5.76Mbps | |
| The keys | The power button |
| The WPS switch button | |
| Restore the factory button (pinhole) | |
| TF card | Upward compatible to 32 gb |
| WIFI | Support 802.11 b/g/n |
| The battery | 2100 mah lithium battery |
| interface | MicroUSB interface |
| Standard USIM interface | |
| MicroSD interface | |
| The adapter | The input voltage:100V~240V,50Hz~60Hz |
| The output voltage:5V DC±10% | |
| The output current:1A | |
| Charging interface | Micro 5pin |
| Working temperature | -10°C to 60°C |
| Working humidity | 5% - 65% |
| Storage temperature | -30°C to 80°C |
| Store humidity | 5% to 95% |
| Software information | |
| The operating system | Win7, Windows XP, Vista, Mac OS |
| language | Chinese/English |
| Shared) | Up to 10 users |
| Set up the) | support |
| SMS | Support mobile and Unicom conventional card receiving and sending, telecommunication cards do not support |
| The phone book | support |
| size | 59x98x15.5 mm |
| The weight of the | 86.04g |
| The standby time | Can reach more than 50 hours |
| Work hours | Can reach more than 7 hours |

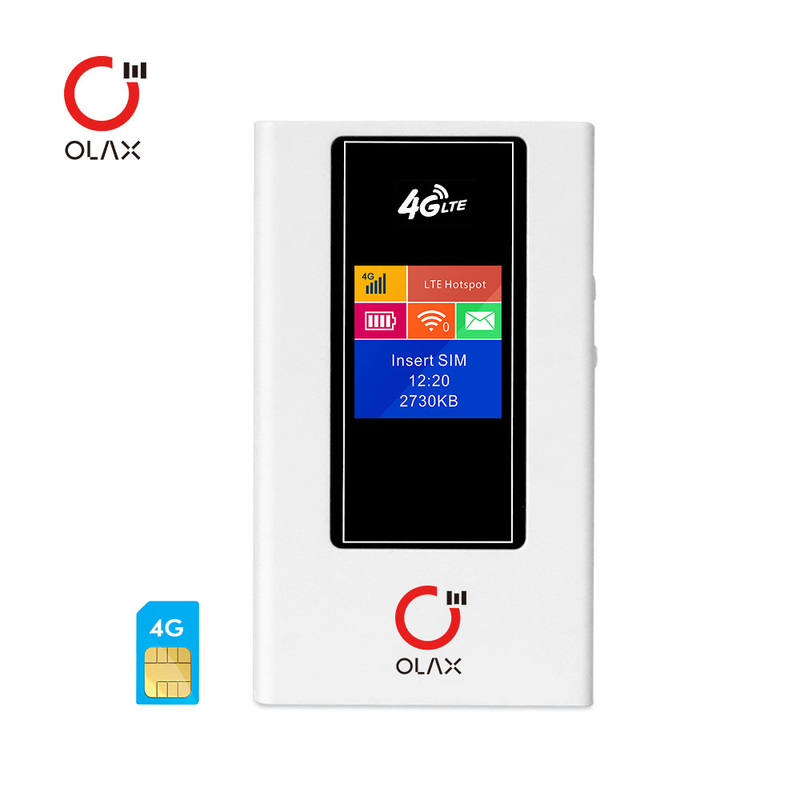

Images of product:
Video
