Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: WD680
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Product size: 13.5*11.5*2.2cm Packing size: 37*30*28cm Weight:0.15kg Packing weight: 9KG/CTN Carton: 60pcs/CTN
Delivery Time: 28-35 working days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Product Name: |
4G LTE Wifi Wireless Router |
Warranty: |
1 Year /12 Months |
Application: |
Utilities |
Battery: |
3000mAh Lithium Battery |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 WiFi Users |
Frequancy Band: |
LTE B1/3/5/40 |
Color: |
Black |
Support: |
OEM |
SIM Card Slot: |
1 SIM Card Slot |
Product Name: |
4G LTE Wifi Wireless Router |
Warranty: |
1 Year /12 Months |
Application: |
Utilities |
Battery: |
3000mAh Lithium Battery |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 WiFi Users |
Frequancy Band: |
LTE B1/3/5/40 |
Color: |
Black |
Support: |
OEM |
SIM Card Slot: |
1 SIM Card Slot |

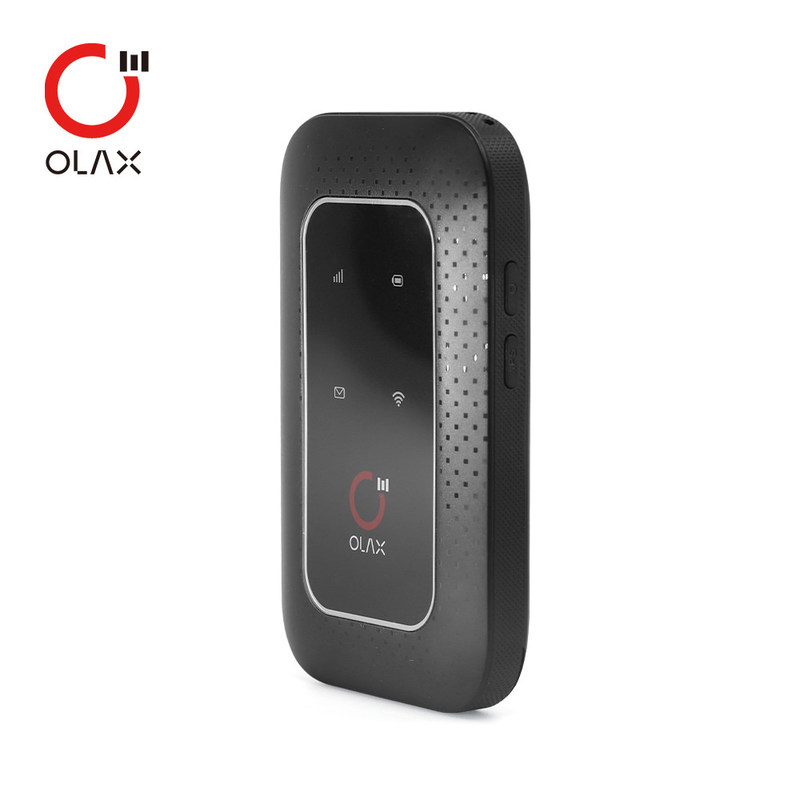

Portable WiFi Routers 4G Recharge Battery Mobile Modem for OLAX WD680
Product Description
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
OLAX WD680 4g WiFi Router supports the following frequency band :B1 B3 B5 B40
Brand: OLAX
Material: All products are made with new materials and chips
Guarantee: support one year warranty,support online after-sales guidance, if necessary, remote computer to check
Appearance color: Black
Quality issues:
Battery capacity: With 2100mah battery for 6-8 hours.
Performance: cat4, 150mbps, support 10 users.
Advantage:
1.4G portable wifi: super strong signal, easy to carry, USB socket
2.Full network access in some countries, global access, no worries about the lack of network everywhere you go
3.4g portable wireless wifi router wireless Internet access card holder plug-in mifi car phone with battery ZTE
4.High performance chip: wifi chip can provide up to 10 users at the same time, easy to enjoy wireless life
Useage way:
1.Open the back cover of the product and put the SIM card in place
2.Install the battery and close the back cover
3.Turn on the phone and use it
Modify password
You can enter the backstage to change the wifi password, the backstage website can be changed by following the address and password on the device.
OLAX WD680 Specification:
| The processor | Cat4 ZX297520V3 |
| spectrum | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B12/B13/B17/B66 |
| TDD LTE: B38/B39/B40/B41 | |
| TD-SCDMA: B34/B39 | |
| WCDMA: B1/B5/B8 | |
| Peak rate | LTE download:100.8Mbps, upload:51.0Mbps (Category 4) |
| TD-SCDMA download:4.2Mbps, upload: 2.2Mbps | |
| WCDMA download:42Mbps, upload: 5.76Mbps | |
| The keys | The power button |
| The WPS switch button | |
| Restore the factory button (pinhole) | |
| TF card | Upward compatible to 32 gb |
| WIFI | Support 802.11 b/g/n |
| The battery | 2100 mah lithium battery |
| interface | MicroUSB interface |
| Standard USIM interface | |
| MicroSD interface | |
| The adapter | The input voltage:100V~240V,50Hz~60Hz |
| The output voltage:5V DC±10% | |
| The output current:1A | |
| Charging interface | Micro 5pin |
| Working temperature | -10°C to 60°C |
| Working humidity | 5% - 65% |
| Storage temperature | -30°C to 80°C |
| Store humidity | 5% to 95% |
