Product Details
Place of Origin: GUAGNDONG
Brand Name: Olax
Certification: CE, ROHS
Model Number: AX6 pro
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 10pcs/carton
Delivery Time: 10000pcs/month
Payment Terms: Western Union, T/T, , D/P
Max. LAN Data Rate: |
300Mbps |
Application: |
Outdoor And Home |
LAN Ports: |
1 |
Chipset: |
ZX297520V3E |
Frequency: |
B1/3/5/7/8/20/38/39/40/41 |
Battery Capacity: |
5000mah |
Max. LAN Data Rate: |
300Mbps |
Application: |
Outdoor And Home |
LAN Ports: |
1 |
Chipset: |
ZX297520V3E |
Frequency: |
B1/3/5/7/8/20/38/39/40/41 |
Battery Capacity: |
5000mah |

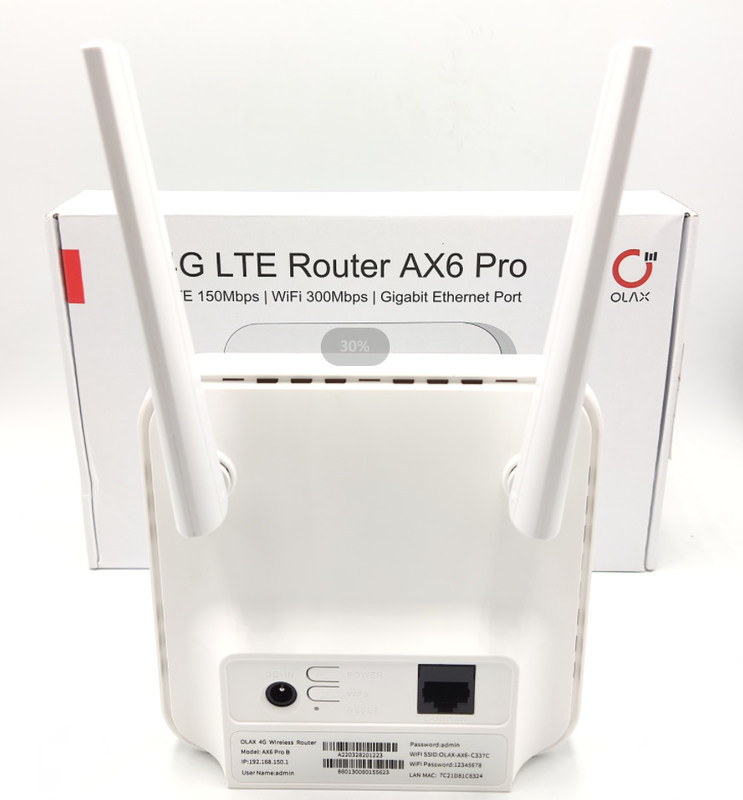

4g Outdoor Wifi Router 4g Modem 4000Mah battery OLAX AX6 PRO
4g Wifi Router with Sim Card Olax AX6 Pro Cat4 4000mah 300mbps Wireless Lte Mobile Hotspot 4g Cpe wifi Router
Product Description
Before order, please check if the band meets your requirements,The link to check is as follows, you can search by entering the name of the country:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
Convenient to insert the SIM card, easy to connect to the Internet
1. Open the back cover of the device
2.Insert the right size SIM card correctly
3. Put in the battery and close the cover
4. Connect to the network: please check the device label for the wifi name and password.
Advantages of the product:
High speed LTE Chipset, Support TDD-LTE/FDD-LTE/UMTS/ networks
4000mAh battery
Up to 32 WiFi users
Support LAN/WAN port
What's inside the box?
1* 4G device
1* Battery
1* Adaptor
1* User manual
1* Internet cable
Notice:
1,The router is not include sim,you should buy the sim from your local
2,You can check the frequence from the below link: https://www.frequencycheck.com
OLAX AX6 PRO Basic Specifications
Item | Description |
USIM Slot | 1.8V/3.0V USIM 2FF |
Ethernet Port | RJ45×1, LAN, 10/100 auto-sensing, auto-MDX |
USB Port | USB 2.0 ×1 |
Battery Cell | 4000mAH Optional |
Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
Reset Button | Tactile button. Long press over 10s to restore the factory settings |
WPS Button | WPS Button ×1 |
LED Indicators | Power LED×1 WPS/WLAN ×1 LAN LED ×1 LTE Internet LED ×1 Signal LED×3 |
Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL); TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL); EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL); GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL); GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL); |
Receive Sensitivity | Compliance with 3GPP standard |
MAX Output Power | LTE FDD:23dBm±2dB; LTE TDD:23dBm±2dB; WCDMA:24dBm+1dB/-3dB; TD-SCDMA:24dBm+1dB/-3dB; GSM B5/8: +33 ±2dBm(Power class 4); GSM B2/3: +30 ±2dBm(Power class 1); |
Antenna Type | Internal Antenna / External Antenna |
Antenna Gain | 2~3dBi(Internal Antenna) 3~5dBi(External Antenna) |
