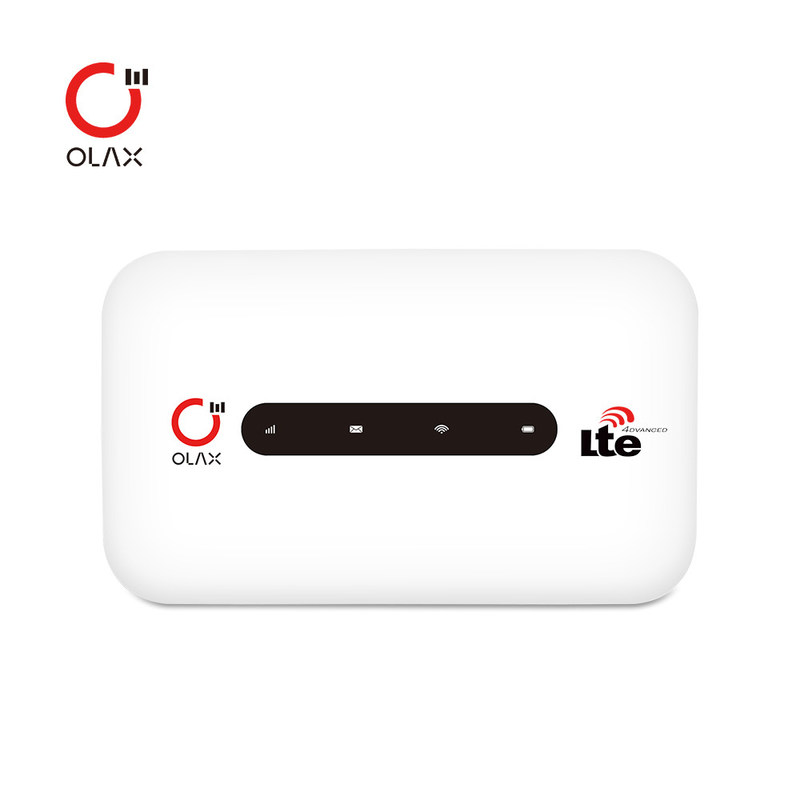

Modem 4G Sim Router Portable Mobile WiFi 150mbps White For Outdoor OLAX MT20
Product Details:
| Place of Origin: | GUANGDONG |
| Brand Name: | OLAX |
| Certification: | ce.ROHS |
| Model Number: | MT20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiated price |
| Packaging Details: | Product size: 13*7*4.3cm Packing size: 30*22*29cm Weight:0.15kg Packing weight: 6KG/CTN Carton: 40pcs/CTN |
| Delivery Time: | 28-35work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Product Name: | 4G LTE Wifi Wireless Router | Frequancy Band: | B1/3/5/7/8/20/38/39/40/41 |
|---|---|---|---|
| Warranty: | 1 Year /12 Months | Battery: | 2100mah |
| User: | 10 Wifi Users | Wireless Speed: | DL 150Mbps/UpLoad 50Mbps |
| Color: | White | SIM Card Slot: | 1 SIM Card Slot |
Product Description
Modem 4G Sim Router Portable Mobile WiFi 150mbps White For Outdoor OLAX MT20
Product description
Before order , please check the frequency of your sim card whether it can work in our router
MT20 White support 4G Frequency band : B1/B3/B5/B7/B8/B20/B38/B40/B41
Note:
This version does not support North and South American countries (except Brazil)
2. connect up to 10 devices
3. OLAX smart connection
4. TTL/IMEI fixed for easy hotspot
5. Open line for all ISP, automatic WiFi sharing
6. 4G LTE up to 150Mbps(DL)/50Mbps(UL)
2. economic: for travelers, many high-end hotels do not provide or charge very high, the use of this program, you can reduce the
cost.
3. security:portable WiFi is practical for the exclusive use of people or familiar with the sharing of people, to avoid the use
of public WiFi, the risk of information leakage.
4.Simple operation:no need to set up, you can use it when you turn on the phone
Package Contents:
1*4G WiFi Router
1*Battery
1*USB Cable
1*English User manual
OLAX MT20 with B28 Product Details
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| USB Port | Micro USB 2.0×1 for Charge |
| Power Button | Hold on 3s to power on/off |
| Short press to wake up /Light the LED | |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LED Indicators | Power LED×2(Red & Blue) WLAN LED×1(Blue) |
| SMS LED×1((Blue) | |
| LTE Connection Status LED×2(Red/Blue) | |
| Battery | 1800mAh/2100mAh(removable) |
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands | MT20-E(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8 |
| MT20-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 | |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； |
| WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； | |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power | LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； |
| WCDMA:24dBm+1dB/-3dB； | |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
product Pictrues
