Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: WD680
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Product size: 13.5*11.5*2.2cm Packing size: 37*30*28cm Weight:0.15kg Packing weight: 9KG/CTN Carton: 60pcs/CTN
Delivery Time: 7 working day
Payment Terms: T/T
Supply Ability: 10000pcs/month
Product Name: |
4G LTE Mifis Wireless Router |
Warranty: |
12 Months |
Application: |
Utilities |
Battery: |
3000mAh Lithium Battery |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 WiFi Users |
Frequancy Band: |
LTE B1/3/5/40 |
Color: |
Black |
Support: |
OEM |
SIM Card Slot: |
1 SIM Card Slot |
Product Name: |
4G LTE Mifis Wireless Router |
Warranty: |
12 Months |
Application: |
Utilities |
Battery: |
3000mAh Lithium Battery |
Wireless Speed: |
DL 150Mbps/UpLoad 50Mbps |
User: |
10 WiFi Users |
Frequancy Band: |
LTE B1/3/5/40 |
Color: |
Black |
Support: |
OEM |
SIM Card Slot: |
1 SIM Card Slot |
Mifis WiFi Router 4G Portable Mobile Modem B1/3/5/40 for Car Travel OLAX WD680
Product Description
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
OLAX WD680 4g Pocket WiFi Router:
1.samll and protable
2.4G high speed internet
3.2100mah Battery
4.Plug and Play
5.High performance chip: wifi chip can provide up to 10 users at the same time, easy to enjoy wireless life
6.Working at anywhere and anytime
WD680 is a new 4G mobile hotspot that provides high-speed 4G connection. It offers excellent wireless access performance and comprehensive hosting capabilities, and brings wireless broadband data to end users. It converts high-speed TDD/FDD signals into Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including cell phones, laptops, tablets and other smart devices, can access the device at the same time.
Contents of the package:
1*Device
1*2100mah Battery
1*USB cable
1*User manual
OLAX WD680 4G Wireless Rouer Cat4 SIM Card Slot Specification:
| The processor | Cat4 ZX297520V3 |
| spectrum | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B12/B13/B17/B66 |
| TDD LTE: B38/B39/B40/B41 | |
| TD-SCDMA: B34/B39 | |
| WCDMA: B1/B5/B8 | |
| Peak rate | LTE download:100.8Mbps, upload:51.0Mbps (Category 4) |
| TD-SCDMA download:4.2Mbps, upload: 2.2Mbps | |
| WCDMA download:42Mbps, upload: 5.76Mbps | |
| The keys | The power button |
| The WPS switch button | |
| Restore the factory button (pinhole) | |
| TF card | Upward compatible to 32 gb |
| WIFI | Support 802.11 b/g/n |
| The battery | 2100 mah lithium battery |
| interface | MicroUSB interface |
| Standard USIM interface | |
| MicroSD interface | |
| The adapter | The input voltage:100V~240V,50Hz~60Hz |
| The output voltage:5V DC±10% | |
| The output current:1A | |
| Charging interface | Micro 5pin |
| Working temperature | -10°C to 60°C |
| Working humidity | 5% - 65% |
| Storage temperature | -30°C to 80°C |
| Store humidity | 5% to 95% |
How to use

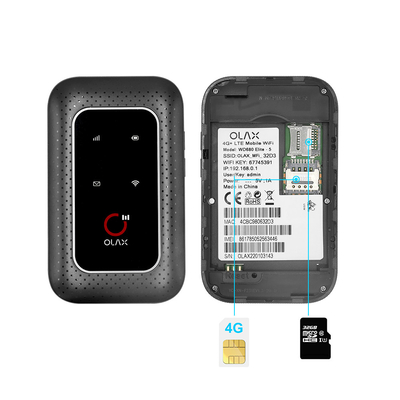

1. Install SIM Card and Battery
2. Power off the MiFi.
3. Remove the back cover and battery.
4. Insert the SIM card into the card slot in the correct position.
5. Install back cover and battery.
Note:
DO NOT remove the SIM card when the MiFi is powered on, as this may damage the SIM card and the MiFi.
