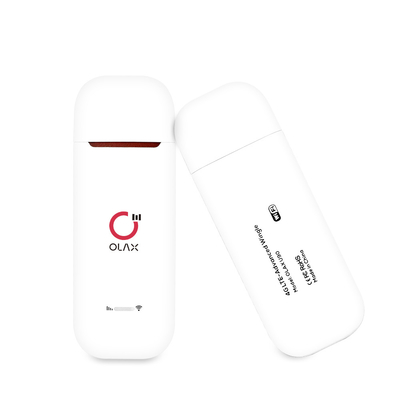

802.11n 150mbps USB Wifi Modem 1T1R Mobile Broadband Modem 4g LTE Portable

802.11n 150mbps USB Wifi Modem 1T1R Mobile Broadband Modem 4g LTE Portable

  • 802.11n 150mbps USB Wifi Modem 1T1R Mobile Broadband Modem 4g LTE Portable
  • 802.11n 150mbps USB Wifi Modem 1T1R Mobile Broadband Modem 4g LTE Portable
802.11n 150mbps USB Wifi Modem 1T1R Mobile Broadband Modem 4g LTE Portable
Product Details:
Place of Origin: GUAGNDONG
Brand Name: Olax
Certification: CE, ROHS
Model Number: U90
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 7 working days
Payment Terms: T/T, D/P, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Max. LAN Data Rate: 150Mbps With Modem Function: Yes
Encryption Type: WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP Band: B1/3/5/7/8/20/38/40/41
Wi-Fi Supported Frequency: 2.4G & 5G Chipset: ZTE ZX297520 V3
High Light:

150mbps USB Wifi Modem


802.11n 4g lte portable modem


1T1R mobile broadband modem 4g

4g LTE USB Wifi OLAX 150mbps Mini U90 Portable Pocket Wireless Mobile Wifi Router​

Product Description

Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
In the search box, enter the country and click on the search, you can see the band used for the operator

OLAX U90 Hotspot WiFi Router supports the following frequency band: 1/3/5/7/8/20/38/40/41 OR B2/4/7/12/13/28a

Brand: OLAX
Material: All products are made with new materials and chips
Shipping Time: Delivery within 3 days for in-stock, 28-35 working days for customized products
Guarantee: support one year warranty,support online after-sales guidance, if necessary, remote computer to check
Personalized features: SMS
Appearance color: white
Performance: cat4, 150mbps, support 10 users.


Note: This product is an internet device, you need to insert the data card to use it.


1.Factory Direct Wireless USB Dongle
2.usb wifi dongle wifi direct
3.4G USB WiFi dongle with sim card slot
4.4g lte wifi usb dongle modem carfi ufi 4G Modem Router Hotspot


OLAX U90 usb dongle Introduction

4G LTE USB Wi-Fi Dongle U90 is a new the new USB WIFI Dongle which could achieve high speed 4G connection. It is not only a modem or a router, it is a real UFI, You can use it in cars via standard usb port,and outside with powerbank via standard usb port. Internet connection sharing, up to 10 users can access the Wi-Fi network at the same time. no need install software (Wi-Fi Mode),Work with external power supply, no limited working time. it can charger by computer USB port/ Power Bank / Car USB charger/Power supply
U90 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network. Wireless devices including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously


Package Contents:
1*4G Router

1*English User manual


WiFi Specifications

Item Description
Standard IEEE 802.11b/g/n
Channel Bandwidth 20MHz,40MHz
Frequency 2.4G
Peak Rate




Modulation DSSS/CCK,OFDM
Receive Sensitivity

-82dBm in 802.11b

-72dBm in 802.11g

-66dBm in 802.11n

MAX Output Power

17dBm in 802.11b 15dBm in 802.11g

14dBm in 802.11n


Antenna Type Internal Antenna
Antenna Gain 2dBi
Active User Max 10


Item Description
Language Support Default English, other languages can be customized upon request
IP Protocol IPv4/IPv6
SIM Management

PIN Management

SIM Lock

Support PIN/PUK certification

Network Connection Management

Automatic network mode setting

Manual network mode setting

Automatic dial-up connection

Manual dial-up connection

Automatic reconnection function

Support roaming dialing

Manual disconnect

WEBUI display information


Configure Network Name(SSID), Password

Wi-Fi basic settings

Wi-Fi security settings

WPS setting

Wi-Fi coverage settings

Wi-Fi black and white list function



UPnP settings

DMZ settings


LTE Status

Connection Time

System Up Time

Device Status

DHCP Client List

Wi-Fi Station List

LTE Status

Firewall Status


Date & Time setting

DHCP settings


Restore factory settings

Firmware upgrade locally/OTA (over the air)


SNTP function

SNTP supports daylight saving time



Can I order a sample to check the quality?
A:Why not? Before making any big order, there must be samples for quality inspection and testing whether they can be used locally.
What's your warranty policy?
A:12 months. Before delivery, we will do 100%confirm all the details with you and do test working in case any unexpected problems.
What's your minimum oem or odm order quantity?
A:Our MOQ is based on different items. Small orders are also welcome. but the unit price is also difference from wholesale price.
What's the price term and payment term?
A:Price term:FOB Shenzhen/Guangzhou/HK Payment term:T/T,30%deposit, the balance before the shipment If L/C required, we can have a further discussion on details.
What's the delivery time?
A:Samples are in stock, can be sent within 1-5 days.
Our daily production quantity is 5000pcs/day with complete materials.
