Shenzhen OLAX Technology Co.,Ltd
 |
| Place of Origin: | GUANGDONG |
| Brand Name: | OLAX |
| Certification: | Ce.ROHS |
| Model Number: | OLAX U80 elite |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Available for negotiation |
| Packaging Details: | Product size: 10.5*2.6*3.6cm Packing size: 23*52*29cm Weight:0.04kg Packing weight: 11KG/CTN Carton: 250pcs/CTN |
| Delivery Time: | 28-35 business days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Warranty: | Twelve Months | Frequency Band: | 1/3/5/8/38/40/41 |
|---|---|---|---|
| USB: | 1 X USB 2.0 | Max. LAN Data Rate: | 150mbps |
| Antenna: | Bulit -in | 5G Wi-Fi Transmission Rate: | None |
| High Light: | 4g usb modem with wifi hotspot,OLAX U80 Elite Wifi Hotspot,OLAX U80 4g sim card modem |
||

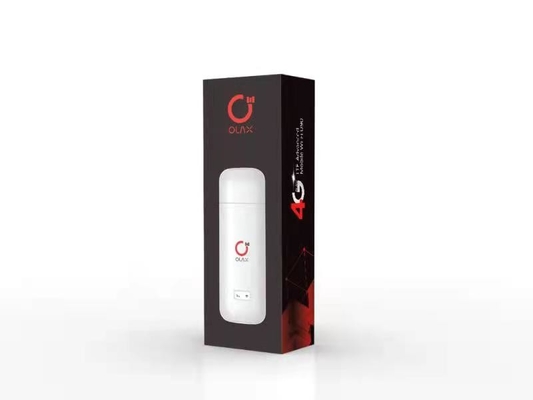

OLAX U80 elite Support Band:1/3/5/8/38/40/41
Features
1.How to use: open the back cover and follow the instructions tp inset the SIM card, directly plug into the computer USB interface
Simple and small design, easy for bringing
2.4G wifi dongle, support multiple 4g networks, internect sharing up to 10 users.
3.Fast spped:150mbps downlink speed, enjoy wifi
what include in the box?
1*English manual user
1*device
Introduction
4G LTE USB Wi-Fi Dongle U80 Elite is a new the new USB WIFI Dongle which could achieve high speed 4G connection. It is not only a modem or a router, it is a real UFI, You can use it in cars via standard usb port,and outside with powerbank via standard usb port.Internet connection sharing, up to 10 users can access the Wi-Fi network at the same time.
Basic Specifications
| Item | Description |
| CPU | ZX297520V3T |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 128Mb Nor Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| USB Port | Standard USB 2.0×1 for Power supply |
| LED Indicators | WLAN LED×1(Green) |
| LTE Connection Status LED×2(Red/Blue) | |
| Dimensions | 96mm (H) x 33mm (W) x 9mm (D) |
| Weight | About 46g |
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/TDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands(Area) | Europe & Africa FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
| Asia: FDD:B1/B3/B5/B8/ TDD:B40 WCDMA:B1/B8 | |
| China: FDD:B1/B3/B5/B8/ | |
| TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 | |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； |
| LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； | |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power | LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； |
| WCDMA:24dBm+1dB/-3dB； | |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
Detailed Pictures
