Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: ce.ROHS
Model Number: OLAX U80 elite
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Product size: 10.5*2.6*3.6cm Packing size: 23*52*29cm Weight:0.04kg Packing weight: 11KG/CTN Carton: 250pcs/CTN
Delivery Time: 28working days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Material: |
ABS |
Warranty: |
1 Year |
Frequency Band: |
1/3/5/8/38/39/40/41 |
Color: |
White |
Name: |
USB WIFI DONGLE |
WIFI: |
802.11 B/g/n |
Material: |
ABS |
Warranty: |
1 Year |
Frequency Band: |
1/3/5/8/38/39/40/41 |
Color: |
White |
Name: |
USB WIFI DONGLE |
WIFI: |
802.11 B/g/n |
4G LTE USB Modem WiFi Wireless Dongle UFI Car SIM Slot 150Mbps OLAX U80 Elite
Product Description
OLAX U80 elite High performance chip: wifi chip can provide up to 10 users at the same time, easy to enjoy wireless life
4G portable wifi: strong signal, easy to be carried
Insert the SIM card to use the data to surf the Internet, not limited by the wired network. free placement and installation position, say goodbye to the bondage of the network

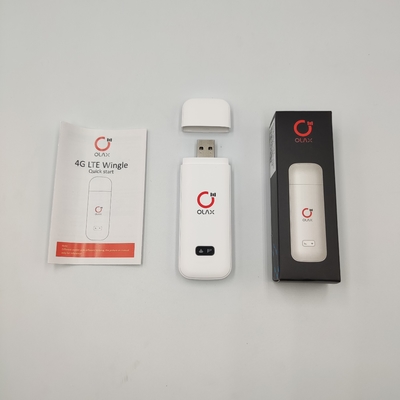

WHAT IS IN PACKAGE
USB WiFi router x 1
manual book x 1
4G/3G/2G Basic Specifications
Item | Description |
CPU | ZX297520V3T |
Wi-Fi chipset | SV6158 |
Memory | ROM/RAM: 128Mb Nor Flash/512Mb RAM |
USIM Slot | 1.8V/3.0V USIM 2FF |
USB Port | Standard USB 2.0×1 for Power supply |
LED Indicators | WLAN LED×1(Green) |
LTE Connection Status LED×2(Red/Blue) | |
Dimensions | 96mm (H) x 33mm (W) x 9mm (D) |
Weight | About 46g |
Item | Description |
Wireless Access Technology | TD-LTE/FDD/TDD/WCDMA |
3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
Bands(Area) | Europe & Africa FDD:B1/B3/B7/B8/B20 WCDMA:B1/B8 |
Asia: FDD:B1/B3/B5/B8/ TDD:B40 WCDMA:B1/B8 | |
China: FDD:B1/B3/B5/B8/ | |
TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 | |
Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL); |
LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL); | |
Receive Sensitivity | Compliance with 3GPP standard |
MAX Output Power | LTE FDD:23dBm±2dB; LTE TDD:23dBm±2dB; |
WCDMA:24dBm+1dB/-3dB; | |
Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
Antenna Type | Internal Antenna |
Antenna Gain | 2~3dBi |
