Product Details
Place of Origin: GUANGDONG
Brand Name: OLAX
Certification: CE ROHS
Model Number: OLAX MF982
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: OLAX Standard Carton :50pcs; 48*22.5*29.5cm; 9.6kg
Delivery Time: 28-35 Working Days
Payment Terms: T/T
Supply Ability: 10000pcs per day
Max. LAN Data Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Wi-Fi Supported Frequency: |
2.4G |
2.4G Wi-Fi Transmission Rate: |
150 Mbps |
Application: |
Outdoor |
SIM Card Slot: |
1 SIM Card Support |
Battery Capacity: |
3000MAH |
User: |
10User |
Max. LAN Data Rate: |
300Mbps |
Standards And Protocols: |
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Wi-Fi Supported Frequency: |
2.4G |
2.4G Wi-Fi Transmission Rate: |
150 Mbps |
Application: |
Outdoor |
SIM Card Slot: |
1 SIM Card Support |
Battery Capacity: |
3000MAH |
User: |
10User |

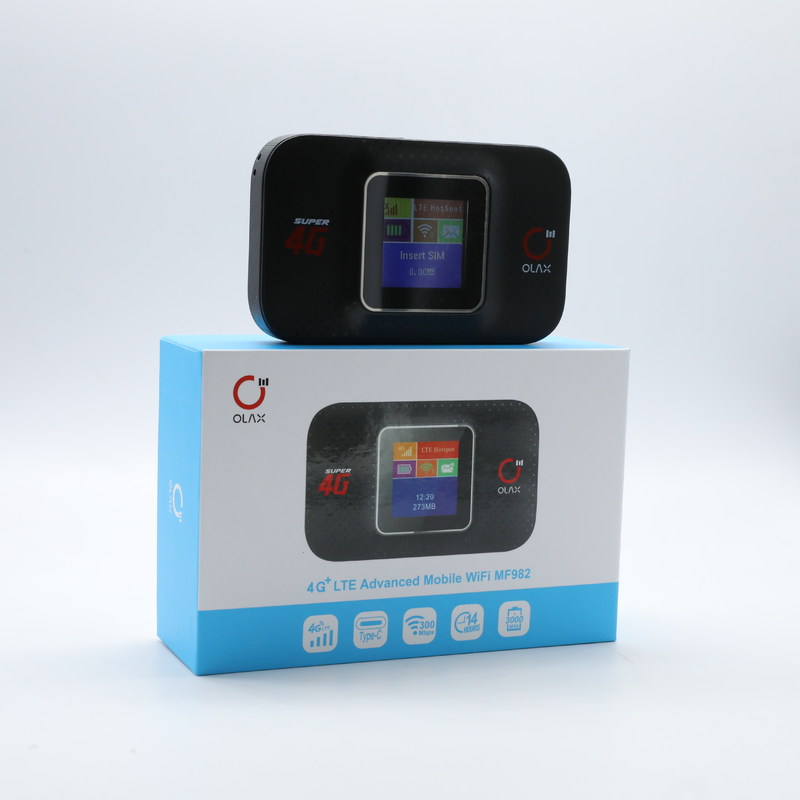

OLAX MF982
4G LTE Mobile wifi
**Unmatched Portability:**
OLAX MF982, a sleek and compact 4G LTE router designed for those who refuse to be internet tethered.
Its pocket-sized form factor is the epitome of portability, ensuring you have powerful internet access wherever you go in Asia,Europ and Africa,probably in America.
**Unlocked Freedom:**
Enjoy the flexibility that comes with an unlocked device.
The MF982 is compatible with a wide range of network providers, giving you the freedom to choose the plan that best suits your connectivity needs.
**4G LTE Speeds:**
Stay ahead in a fast-paced digital world with the MF982's 4G LTE capabilities.
Experience rapid download and upload speeds that keep you connected for streaming, gaming, and remote work without buffering.
Hot sale in the world market.
**Multiple Device Connectivity:**
The MF982 is built to share.
Connect multiple devices simultaneously, allowing you to create a personal WiFi network for your family, friends, or colleagues, ensuring everyone stays connected,not only for one person.
**User-Friendly Interface:**
Simplicity is at the heart of the MF982's design.
With an intuitive interface, setting up your router and managing your network has never been easier.
The screen allows you to clearly see the status of the wifi connection, link password, etc.
**Long-Lasting Battery:**
Designed for extended use, the MF982's battery life lets you work, play, and explore without the constant need for recharging, making it perfect for long trips or all-day use.Can be used for 8-10 hours.
**Advanced Security Features:**
Protect your data with the MF982's robust security protocols.
Your connection is secure and your information is safeguarded.
**Versatile Compatibility:**
The MF982 is designed to work with a variety of devices, ensuring that no matter what your tech stack looks like, you'll be able to connect and stay online.
**Discover the Freedom and Flexibility of the OLAX MF982:**
Elevate your mobile internet experience with the device Unlocked 4G LTE Router.
Perfect for travelers, remote workers, and anyone who values high-speed internet.
1. Introduction
MF982 a hot sale 4G mobile hotspot which could achieve high speed 4G connection.Many customers have the requirement.
MF982 can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users.
It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN).
Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.
2. Basic Specifications
| Item | Description |
| CPU | ZX297520V3E |
| Wi-Fi chipset | SV6158 |
| Memory | ROM/RAM: 1Gb NAND Flash/512Mb RAM |
| USIM Slot | 1.8V/3.0V USIM 3FF |
| Interface |
MicroUSB interface Standard USIM interface MicroSD interface |
| Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
| T CARD | Upward compatible to 32 GB |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| LCD Indicators |
Power LED×2(Red & Blue) WLAN LED×1(Blue) SMS LED×1((Blue) LTE Connection Status LED×2(Red/Blue) |
| Battery | 3000Mah lithium Battery |
| Dimensions | 97*58.5*18.9mm |
| Weight | About 100g |
3. 4G/3G/2G Technical Specifications
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA |
| 3GPP/3GPP2 protocol | LTE FDD/TDD Rel 9 CAT4 |
| Bands |
MF982(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B40/B41(120M) WCDMA:B1/B2/B5/B8 MF982-A(America) FDD:B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66 TDD: B38/B40/B41(120M) WCDMA:B1/B2/B4/B5/B8 |
| Data Rate |
LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power |
LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； |
| Wireless MIMO technology | LTE 1T2R ,DL MIMO 2*2 |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
4. WiFi Specifications
| Item | Description |
| Standard | IEEE 802.11b/g/n |
|
Channel Bandwidth |
20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 1T1R |
| Peak Rate | 802.11b:11Mbps 802. 11g:54Mbps 802. 11n:150Mbps |
| Modulation | DSSS/CCK,OFDM |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802. 11g -62dBm in 802.11n |
| MAX Output Power | 17dBm in 802.11b 15dBm in 802. 11g 14dBm in 802.11n |
| Antenna Type | Internal Antenna |
| Antenna Gain | 2~3dBi |
| Active User | Max 8 |
5. SW Specifications
| Item | Description |
| Language Support | Default English, other languages can be customized upon request |
| IP Protocol | IPv4/IPv6 |
| SIM Management |
PIN Management SIM Lock Support PIN/PUK certification |
| Network Connection Management |
Automatic network mode setting Manual network mode setting Automatic dial-up connection Manual dial-up connection Automatic reconnection function Support roaming dialing Manual disconnect WEBUI display information |
| LTE Scan Mode |
Full band scan Frequency Lock PCI Lock |
| WLAN |
Configure Network Name(SSID), Password Support Multi SSID Wi-Fi basic settings Wi-Fi security settings WPS setting Support AP/Station mode Wi-Fi QR code Wi-Fi coverage settings Wi-Fi black and white list function |
| SMS |
Send, Receive, Read, Edit, Delete message Message full processing Concurrency with data services Show the number of stored messages Message status report support |
| Firewall |
IP/MAC/URL Filter UPnP settings DMZ settings |
| Statistics |
LTE Status Connection Time System Up Time Device Status DHCP Client List Wi-Fi Station List LTE Status Firewall Status |
| Maintenance |
Date & Time setting DHCP settings Reboot Restore factory settings Firmware upgrade locally/ FOTA |
| SNTP |
SNTP function SNTP supports daylight saving time |
| Charge | Shut down charging Power on and charge |
6. Environmental Specifications
| Item | Description |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 95% |
| Standby time | 300 hours(LTE connected and WIFI off) |
| Working time | 6~8 hours |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
