Product Details:
|
| Material: | ABS | Wireless Communication Standard: | 802.11g, 802.11b, 802.11n |
|---|---|---|---|
| Wifi Speed: | Up To 300Mbps | WiFi Users: | 32 Devices |
| WAN/LAN: | 1 WAN/LAN | Support: | 2G/3G/4G Sim Card |
| Power Supply: | 12V 1A DC Supply | ||
| High Light: | SIM Card Wireless Router AX6 PRO,Unlocked 4G router RJ45,OEM sim card wireless wifi router |
||
4G CPE Wireless Router SIM Card WAN/LAN Modem Support 32 Devices to Share Traffic OLAX AX6 PRO
Product description:
Notice:
1,This device does not contain a SIM card, please note the difference
2,Please note that this device is for use in European, African and Asian countries and is not available for a limited number of countries. Please note that the frequency band is suitable for your country.
The links to check the native bands are as follows.: https://www.frequencycheck.com
Product Advantages:
1.Small and smart, 4000mah battery, wifi speed up to 300mbps, support 32users at the same time
2.Smart: easier to work without network cable, connecting to your computer via wifi is fast and convenient
3.Support 32 terminals at the same time
What are the benefits of Sim card router?
What's inside the box?
1* device
1*Battery
1*Adaptor
1*User manual
1*Internet cable
Product Specification:
| Item | Description |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| Ethernet Port | RJ45×1, LAN, 10/100 auto-sensing, auto-MDX |
| USB Port | USB 2.0 ×1 |
| Battery Cell | 4000mAH Optional |
| Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| WPS Button | WPS Button ×1 |
| LED Indicators | Power LED×1 WPS/WLAN ×1 LAN LED ×1 LTE Internet LED ×1 Signal LED×3 |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL)； EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL)； GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL)； GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power | LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； TD-SCDMA:24dBm+1dB/-3dB； GSM B5/8: +33 ±2dBm(Power class 4)； GSM B2/3: +30 ±2dBm(Power class 1)； |
| Antenna Type | Internal Antenna / External Antenna |
| Antenna Gain | 2~3dBi(Internal Antenna) 3~5dBi(External Antenna) |

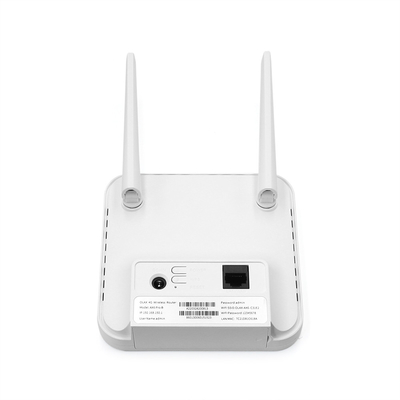

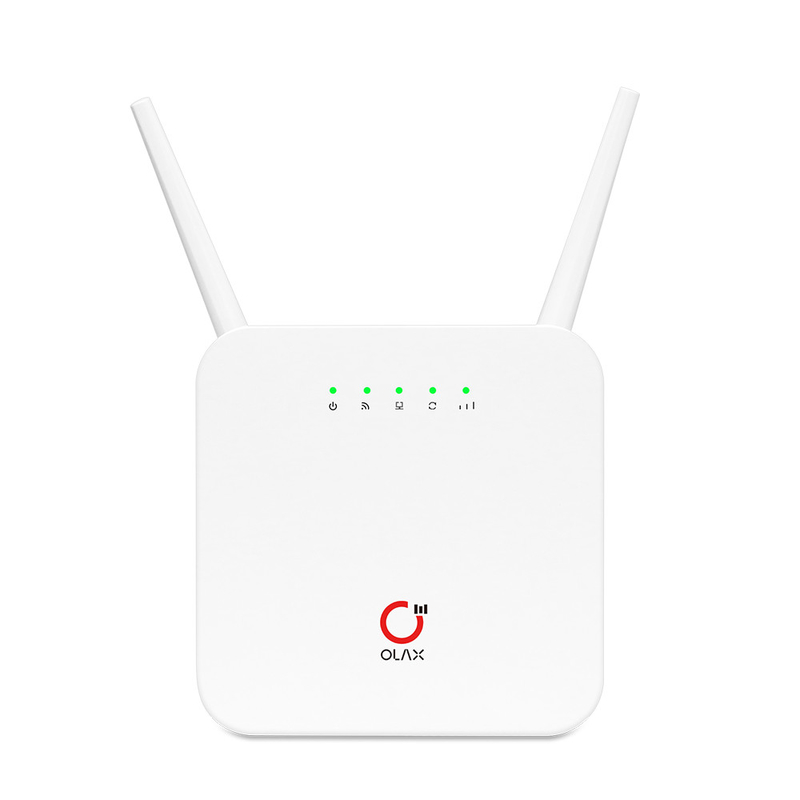

Pictures display:
