Product Details:
|
| Max. LAN Data Rate: | 300Mbps | With Modem Function: | No |
|---|---|---|---|
| Standards And Protocols: | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n | Wi-Fi Supported Frequency: | 2.4G |
| 2.4G Wi-Fi Transmission Rate: | 300 Mbps | LAN Ports: | 1 |
| Product Name: | 4G CPE Router | LTE FDD: | B1/3/5/7/8/20/38/39/40/41 |
| User: | 32Users | SIM Card Slot: | 1 SIM Card Support |
| Battery Capacity: | 4000mAh | Antenna: | 2 External Antennas |
| High Light: | Long Range CPE Wifi Router 4000mAh,wifi router 300mbps OLAX AX6 PRO,4g Router With Antenna 4000mAh |
||

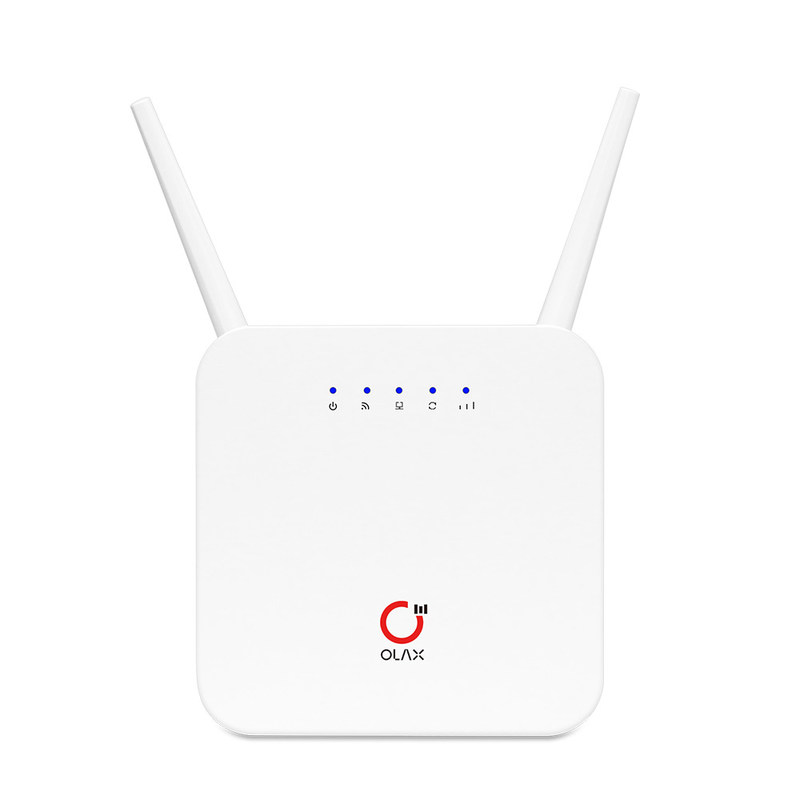

OLAX AX6 Pro Long Range CPE Wifi Router 300mbps Router Antenna Routers Wifi 4g With Sim Card
Lte Router Warm reminder
For this model, we have two version , American versin and European version, as you know different country has different 4G bands , you can send us an inquriy for more details for this 4G Lte Router.
Please contact our sales staff to confirm that the bands supported by the device are suitable for use in your country, or you can check it out by yourself through the following link:
https://www.frequencycheck.com/
Enter the country in the search box and click on the search, you can see the bands used by the operators.
AX6 PRO frequency band as follow:B1/3/5/7/8/20/38/39/40/41; B2/3/4/5/7/8/13/28AB
Convenient to insert the SIM card, easy to connect to the Internet
1. Open the back cover of the device
2.Insert the right size SIM card correctly
3. Put in the battery and close the cover
4. Connect to the network: please check the device label for the wifi name and password.
Advantages of the product:
1.High speed LTE Chipset, Support TDD-LTE/FDD-LTE/UMTS/ networks
2.4000mAh battery
3.Up to 32 WiFi users
4.Support LAN/WAN port
Contents of the package
◆4G rourter
◆Standard packaging box
◆Power Adapter
◆4000mah battery
◆User manual
◆RJ45 cable
OLAX AX6 PRO Basic Specifications
| Item | Description |
| USIM Slot | 1.8V/3.0V USIM 2FF |
| Ethernet Port | RJ45×1, LAN, 10/100 auto-sensing, auto-MDX |
| USB Port | USB 2.0 ×1 |
| Battery Cell | 4000mAH Optional |
| Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| WPS Button | WPS Button ×1 |
| LED Indicators | Power LED×1 WPS/WLAN ×1 LAN LED ×1 LTE Internet LED ×1 Signal LED×3 |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)； LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)； WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)； TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL)； EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL)； GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL)； GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL)； |
| Receive Sensitivity | Compliance with 3GPP standard |
| MAX Output Power | LTE FDD:23dBm±2dB； LTE TDD:23dBm±2dB； WCDMA:24dBm+1dB/-3dB； TD-SCDMA:24dBm+1dB/-3dB； GSM B5/8: +33 ±2dBm(Power class 4)； GSM B2/3: +30 ±2dBm(Power class 1)； |
| Antenna Type | Internal Antenna / External Antenna |
| Antenna Gain | 2~3dBi(Internal Antenna) 3~5dBi(External Antenna) |
Product Description
