Product Details:
|
| Max. LAN Data Rate: | 300Mbps | With Modem Function: | Yes |
|---|---|---|---|
| Wi-Fi Supported Frequency: | 2.4G | Wi-Fi Transmission Standard: | 802.11n |
| Encryption Type: | WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP | Application: | Outdoor And Home |
| LAN Ports: | 1 | Chipset: | ZX297520V3E |
| Frequency: | B1/3/5/7/8/20/38/39/40/41 | Warranty: | 1 Year |
| High Light: | lte cpe cat4 300mbps CE,4g lte cpe router ROHS,4g lte cpe router with sim card slot |
||

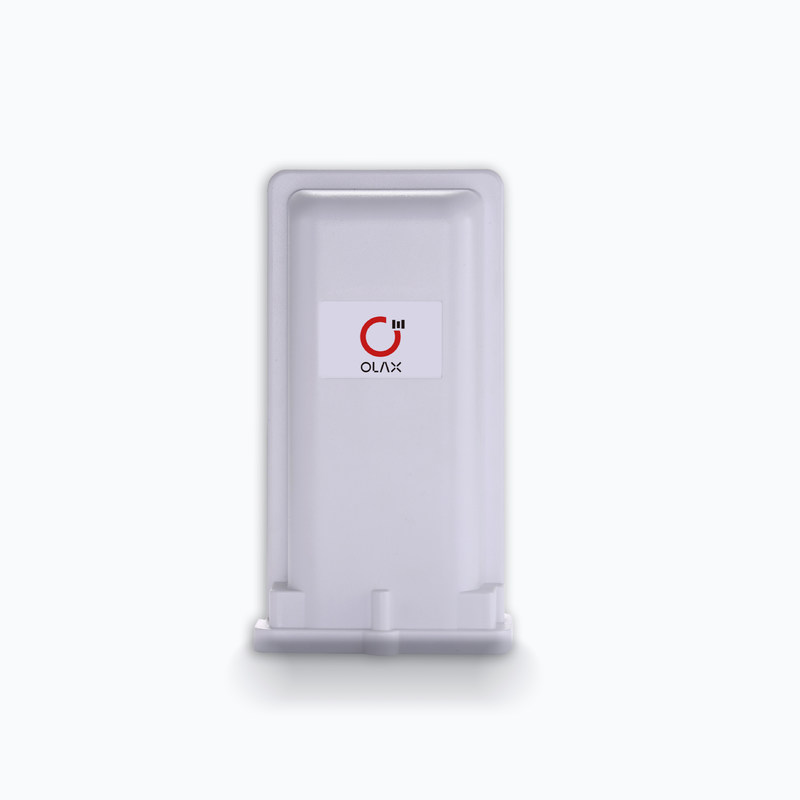

OLAX P11 Elite 4g Lte Wifi Router Sim Slot Outdoor Cpe router Kit Cpe Wifi Modem
| Spec | Description |
| Chipset | ZX297520V3/ ZTE |
| LTE standard | LTE CAT4 |
| FDD:150Mbps(DL)/50Mbps(UL) | |
| TDD:110Mbps(DL)/10Mbps(UL) | |
| Memory | ROM: 128MB NAND Flash |
| RAM: 128MB DDR | |
| Indicators | ODU: |
| POW/SIM/ETH/RUN/SIGNAL | |
| IDU: | |
| POW/SIGNAL/WIFI/INTERNET/WAN/LAN | |
| Buttons | RESET Button |
| Interfaces | ODU: |
| 1. FE WAN Port * 1 (POE) | |
| 2. SIM Slot * 1 | |
| IDU: | |
| 1. FE LAN Port * 2 | |
| 2. FE WAN Port * 1 | |
| 3. RJ11 Port * 1 (Optional) | |
| 4. DC Socket | |
| SIM | USIM(2FF) |
| Support 1.8V & 3.3V | |
| Power Supply | AC100V~240V,50Hz~60Hz |
| DC 15V DC±10% 0.5A | |
| Dimensions | ODU: 180mm*132mm*48mm |
| IDU: 125x93x27(mm) | |
| Weight | ODU: 750g |
| IDU: 125g | |
| Environment Specifications | |
| Feature | Capability |
| Operating Temperature | -20°C~55°C |
| Storage Temperature | -20°C~70°C |
| Operating humidity | 95% Maxton-condensing |
| Storage humidity | 95% Maxton-condensing |
| RF Specifications | |
| Feature | Capability |
| Supported Bands | LTE TDD: |
| (Band will be customized as per customer requirement) | B38/39/40/41(200M) |
| LTE FDD: | |
| B1/2/3/5/7/8/17/28A+B(20) | |
| HSPA+/HSPA/UMTS: | |
| B1(2100MHz)/B2(1900MHz)/B5(850MHz)/B9(900MHz) | |
| GSM: 850MHz/900MHz/1800MHz/1900MHz | |
| LTE MIMO | MIMO 2*2(1TX 2RX) |
| LTE Tx | 1 Tx |
| LTE Output Power@25℃ | 23±2 dBm |
| LTE Antenna | 2 Built-in |
| LTE Antenna Gain | Directional Antenna > 6dBi (for high frequency bands) |
| Omnidirectional Antenna: | |
| 2600MHz: 5dBi | |
| 1800MHz: 3dBi | |
| 700MHz: 1.5dBi | |
| LTE Peak Throughput | DL 150 Mbps, UL 50 Mbps |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Output Power | 15 dBm/2.4G |
| Wi-Fi Antenna | 2 Build-in |
| Wi-Fi Antenna Gain | 3 dBi |
| Wi-Fi Channel BW | 20MHz, 40MHz |
| Wi-Fi MIMO | MIMO 2*2 (2T2R) |
| Wi-Fi Concurrent | Up to 32 |
| Users | |
| If the LTE antenna supports all frequency, the antenna gain will be lower than the value in table. | |
| Topology | Topology based on LTE WAN network |
| Software Specifications | |
| Spec | Description |
| Language | English |
| Chinese | |
| Could be customized | |
| Https/http | Both |
| User login | Support two users (user and admin) with different limitation and display |
| SMS | Write/send/receive short messages |
| Send/receive extra-long messages | |
| LTE Network Setup | Create/delete/edit APN |
| IPv4v6 dual stack | Support IPV4, IPV6, IPV4V6 |
| Wi-Fi/WLAN Setup | SSID/Key, |
| SSID broadcasting and hiding, | |
| Security Mode: None (Open), WPA2-PSK(AES), and WPA/WPA2-PSK(TKIP/AES) | |
| WPS Setup, | |
| Wi-Fi MAC Filter, | |
| Wi-Fi Advanced Settings. | |
| DHCP Setup | Enable/disable DHCP server |
| Configure DHCP IP Pool | |
| Configure DHCP Lease Time | |
| DNS Setup | Support the auto DNS or manual DNS configuration |
| SIM Card | PIN Management |
| SIM card Authentication | |
| Backup/ | Encryption backup current settings and restore the backup settings |
| Restore | |
| Diagnosis | Export current diagnosis results and operation logs |
| Statistics | Link Status (LAN/Wi-Fi Connected Devices) |
| Transmit / receive traffic in packets | |
| Up Time | |
| Multi-APN | 3 |
| VPN | PPTP/L2TP/GRE |
| VPN PASSTHROUGHT | |
| 4G status | Signal strength |
| Network type | |
| Network connection status | |
| Operator name, system mode | |
| SIM card status | |
| Cell lock | Support |
| Carrier SIM Lock | Support |
| Work mode | NAT/ Router mode |
| Device Management | |
| Spec | Description |
| Software Update | Full image upgrade |
| Web UI update | |
| TR069 update | |
| TR069 | Support HTTP/HTTPS ACS, |
| Support upload/download the ACS specified file, | |
| Support download configuration file, | |
| Support configure & queries parameters, | |
| Support remote upgrade, | |
| Support cycle monitor | |
| Syslog | Support the syslog function can send the log to the PC via LAN/Wi-Fi |
| Diagnostics | Support the Ping and trace route and TCPDUMP. |
| NAT Mode | |
| Spec | Description |
| NAT | Support NAT by default |
| Firewall | Can enable or disable the firewall |
| Router protocol | Static Route |
| ALG | Support |
| Wi-Fi Features | |
| Functions | Users can turn on/off WLAN function through Web UI. |
| Support configuration WLAN functions through Web UI, include: SSID, SSID broadcasting turn on/off, Channel, rate and mode | |
| Support encryption: | |
| None (Open), WPA2-PSK(AES), and WPA/WPA2-PSK(TKIP/AES) | |
| Support WPS | |
| Wi-Fi protocol support: | |
| IEEE 802.11 b/g/n (2.401 – 2.483 GHz) | |
| Wi-Fi max. users: 32 | |
| Support SSID broadcasting | |
| Support multi SSID | |
| Support Wi-Fi channel self-adapt and select | |
| Support guest network |
