|Place of Origin:||GUAGNDONG|
|Model Number:||AX6 pro|
|Minimum Order Quantity:||Negotiable|
|Payment Terms:||Western Union, T/T, , D/P|
|Max. LAN Data Rate:||300Mbps||Application:||Outdoor And Home|
|Battery Capacity:||5000mah||Warranty:||1 Year|
4g lte outdoor modem ROHS,
outdoor modem router Olax AX6 Pro,
lte cpe cat4 CE

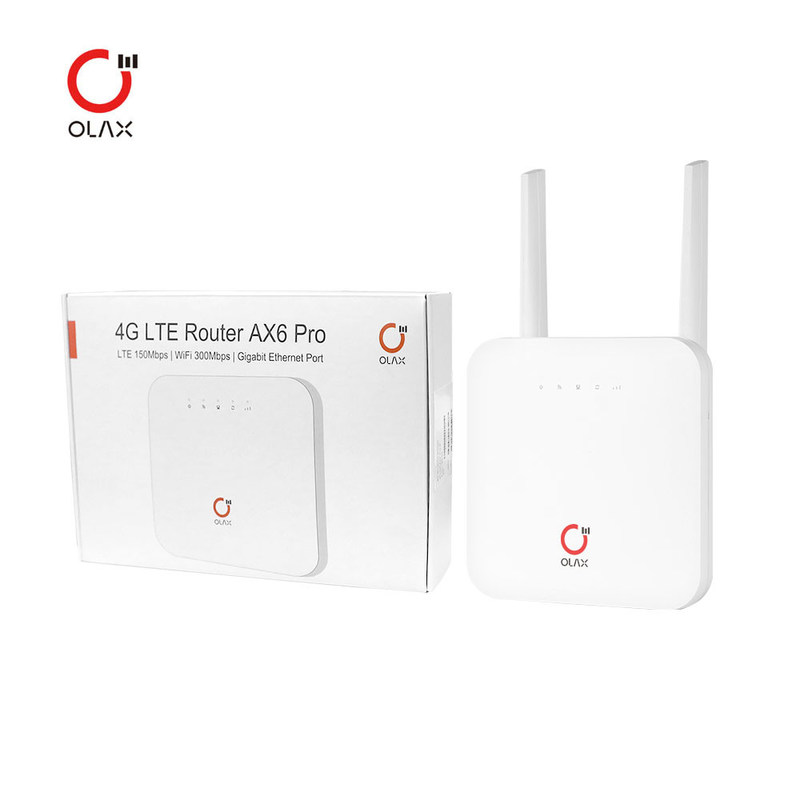

4g outdoor Wifi Router 4g Cpe Router With Sim Card Slot 4000mah battery OLAX AX6 PRO
Before order, please check if the band meets your requirements,The link to check is as follows, you can search by entering the name of the country:
Enter the country in the search box and click on the search, you can see the bands used by the operators.

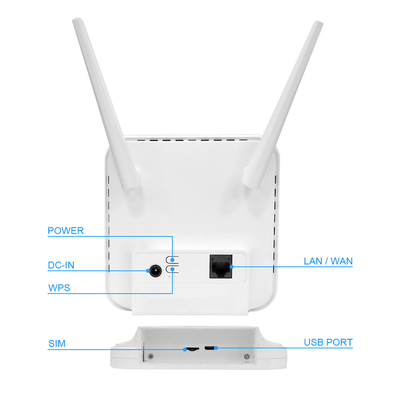

Convenient to insert the SIM card, easy to connect to the Internet
1. Open the back cover of the device
2.Insert the right size SIM card correctly
3. Put in the battery and close the cover
4. Connect to the network: please check the device label for the wifi name and password.
Advantages of the product:
High speed LTE Chipset, Support TDD-LTE/FDD-LTE/UMTS/ networks
Up to 32 WiFi users
Support LAN/WAN port
What's inside the box?
1* 4G device
1* User manual
1* Internet cable
1,The router is not include sim,you should buy the sim from your local
2,You can check the frequence from the below link: https://www.frequencycheck.com
OLAX AX6 PRO Basic Specifications
|USIM Slot||1.8V/3.0V USIM 2FF|
|Ethernet Port||RJ45×1, LAN, 10/100 auto-sensing, auto-MDX|
|USB Port||USB 2.0 ×1|
|Battery Cell||4000mAH Optional|
|Power Supply||Input: Universal range 100V~240V AC
Output: 12V DC/1A
|Reset Button||Tactile button. Long press over 10s to restore the factory settings|
|WPS Button||WPS Button ×1|
|LED Indicators||Power LED×1
LAN LED ×1
LTE Internet LED ×1
|Data Rate||LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL)；
LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL)；
WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL)；
TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL)；
EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL)；
GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL)；
GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL)；
|Receive Sensitivity||Compliance with 3GPP standard|
|MAX Output Power||LTE FDD:23dBm±2dB；
GSM B5/8: +33 ±2dBm(Power class 4)；
GSM B2/3: +30 ±2dBm(Power class 1)；
|Antenna Type||Internal Antenna / External Antenna|
|Antenna Gain||2~3dBi(Internal Antenna)
