We believe Quality is the Life of the Enterprise
 |
| Place of Origin: | GUANGDONG |
| Brand Name: | OLAX |
| Certification: | ce.ROHS |
| Model Number: | AX7 PRO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Product size: 25*17*8cm Packing size: 35*26*27cm Weight:0.55kg Packing weight: 5KG/CTN Carton: 10pcs/CTN |
| Delivery Time: | 28-35 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Product Name: | 4G LTE Wifi Wireless Router | Warranty: | 1 Year /12 Months |
|---|---|---|---|
| Application: | Utilities | Battery: | 5000mAh Bulit In Battery |
| Wireless Speed: | 300mbps | Frequancy Band: | LTE B1/3/5/7/8/20/38/39/40/41 |
| High Light: | CPE WiFi Router 5000mah,Unlocked wireless modem router,rj45 wifi router OLAX AX7 Pro |
||

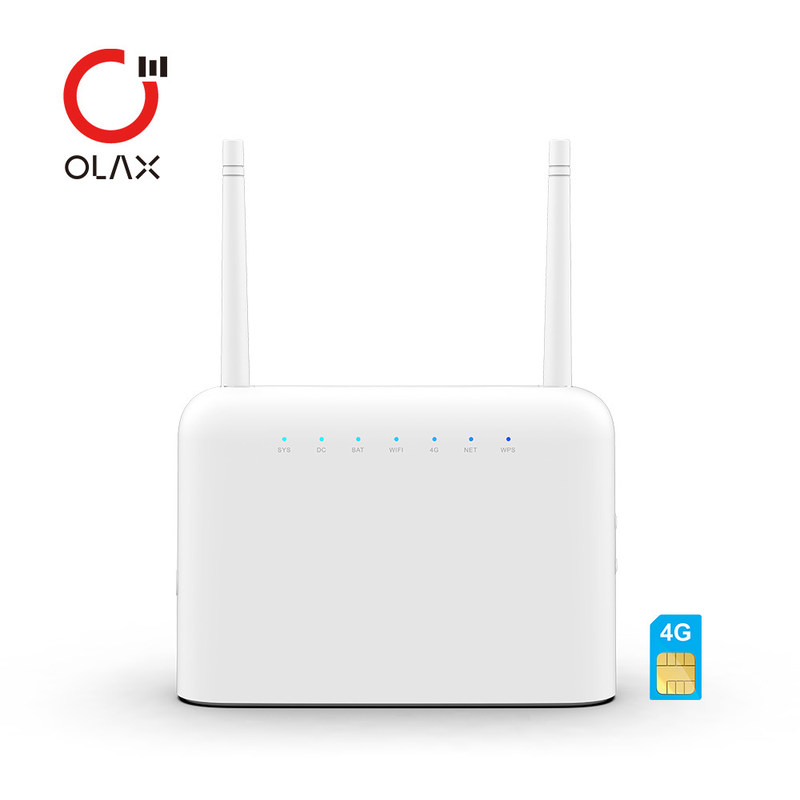

CPE WiFi Router Unlocked Mobile 4G Wireless RJ45 Port 5000mah OLAX AX7 Pro
Product Description
Before making the order ,please check the frequency of your sim card whether it can work in our router
4G/FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800Mhz)
4GTDD:B38/B39/B40/B41(2600/1900/2300/2500Mhz)
3G WCDMA:B1/B8(2100/900MHZ)
Note:
This version does not support North and South American countries (except Brazil)
Information
| Model Name | OLAX AX7 Pro |
| Form Factor | 4G CPE |
| USB Port | USB 2.0 ×1 |
| WIFI | 2.4G, 802.11 b/g/n |
| Frequency | LTE:B1/3/5/7/8/20/38/39/40/41 WCDMA:B1/5/8 |
| Maximum Data Throughput | LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
| Chipset | ZX297520V3 |
| Dimensions | 270mm (H) x 180mm (W) x 80mm (D) |
| Weight | About 465g |
| Item | Description |
| Standard IEEE | 802.11b/g/n |
| Channel Bandwidth | 20MHz,40MHz |
| Frequency | 2.4G |
| TXRX | 2T2R |
| MIMO | DL:2X2 |
| Peak Rate | 802.11b:11Mbps 802.11g:54Mbps 802.11n:300Mbps |
| Modulation | DSSS/CCK,OFDM |
| Receive Sensitivity | “-85dBm in 802.11b -70dBm in 802.11g -66dBm in 802.11n |
| MAX Output power | 17dBm in 802.11b 14dBm in 802.11g 13dBm in 802.11n |
| Antenna Type | Internal Antenna / External Antenna |
| Antenna Gain | 1.5~2dBi |
| Active User | 32 |
