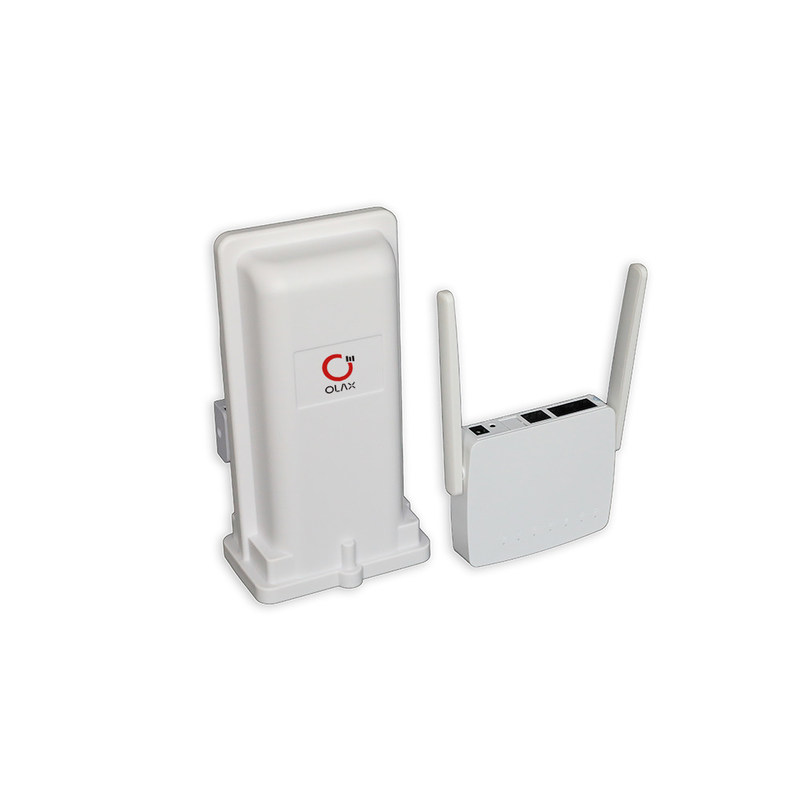

OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot

Certification
China Shenzhen Olax Technology CO.,Ltd certification
China Shenzhen Olax Technology CO.,Ltd certification
Customer Reviews
Thanks for your patience to help me handle all of my goods .

—— AddaI Asubonteng

Im enjoy the services with Olax.

—— Philippe Willson

I'm Online Chat Now

OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot

OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot
OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot

Large Image :  OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot

Product Details:
Place of Origin: GUAGNDONG
Brand Name: Olax
Certification: CE, ROHS
Model Number: P11 Elite
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 72.5$/pcs
Packaging Details: 10pcs/carton
Delivery Time: 10000pcs/month
Payment Terms: Western Union, T/T, , D/P

OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot

Description
Max. LAN Data Rate: 300Mbps With Modem Function: Yes
Wi-Fi Supported Frequency: 2.4G Wi-Fi Transmission Standard: 802.11n
Encryption Type: WPA2-PSK, WPA2, WPA3, WPA2-Enterprise, WPA-PSK, WPA, WEP Application: Outdoor And Home
LAN Ports: 1 Chipset: ZX297520V3E
Frequency: B1/3/5/7/8/20/38/39/40/41 Warranty: 1 Year
High Light:

OLAX P11 Elite CPE Wifi Router

,

Wifi Router Outdoor LTE TDD

,

outdoor 4g modem Sim Slot

OLAX P11 Elite 4g Lte Wifi Router Sim Slot Outdoor Cpe router Kit Cpe ModemOLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot 0OLAX P11 Elite CPE Wifi Router Outdoor 4g Modem LTE TDD Sim Slot 1

Spec
Description
Chipset
ZX297520V3/ ZTE
LTE standard
LTE CAT4
FDD:150Mbps(DL)/50Mbps(UL)
TDD:110Mbps(DL)/10Mbps(UL)
Memory
ROM: 128MB NAND Flash
RAM: 128MB DDR
Indicators
ODU:
POW/SIM/ETH/RUN/SIGNAL
IDU:
POW/SIGNAL/WIFI/INTERNET/WAN/LAN
Buttons
RESET Button
Interfaces
ODU:
1. FE WAN Port * 1 (POE)
2. SIM Slot * 1
IDU:
1. FE LAN Port * 2
2. FE WAN Port * 1
3. RJ11 Port * 1 (Optional)
4. DC Socket
SIM
USIM(2FF)
Support 1.8V & 3.3V
Power Supply
AC100V~240V,50Hz~60Hz
DC 15V DC±10% 0.5A
Dimensions
ODU: 180mm*132mm*48mm
IDU: 125x93x27(mm)
Weight
ODU: 750g
IDU: 125g


Environment Specifications

Feature
Capability
Operating Temperature
-20°C~55°C
Storage Temperature
-20°C~70°C
Operating humidity
95% Maxton-condensing
Storage humidity
95% Maxton-condensing


RF Specifications

Feature
Capability
Supported Bands
LTE TDD:
(Band will be customized as per customer requirement)
B38/39/40/41(200M)

LTE FDD:

B1/2/3/5/7/8/17/28A+B(20)

HSPA+/HSPA/UMTS:

B1(2100MHz)/B2(1900MHz)/B5(850MHz)/B9(900MHz)

GSM: 850MHz/900MHz/1800MHz/1900MHz
LTE MIMO
MIMO 2*2(1TX 2RX)
LTE Tx
1 Tx
LTE Output Power@25℃
23±2 dBm
LTE Antenna
2 Built-in
LTE Antenna Gain
Directional Antenna > 6dBi (for high frequency bands)
Omnidirectional Antenna:
2600MHz: 5dBi
1800MHz: 3dBi
700MHz: 1.5dBi
LTE Peak Throughput
DL 150 Mbps, UL 50 Mbps
Wi-Fi Frequency
2.4 GHz
Wi-Fi Output Power
15 dBm/2.4G
Wi-Fi Antenna
2 Build-in
Wi-Fi Antenna Gain
3 dBi
Wi-Fi Channel BW
20MHz, 40MHz
Wi-Fi MIMO
MIMO 2*2 (2T2R)
Wi-Fi Concurrent
Up to 32
Users
If the LTE antenna supports all frequency, the antenna gain will be lower than the value in table.



Topology
Topology based on LTE WAN network


Software Specifications

Spec
Description
Language
English
Chinese
Could be customized
Https/http
Both
User login
Support two users (user and admin) with different limitation and display
SMS
Write/send/receive short messages
Send/receive extra-long messages
LTE Network Setup
Create/delete/edit APN
IPv4v6 dual stack
Support IPV4, IPV6, IPV4V6
Wi-Fi/WLAN Setup
SSID/Key,
SSID broadcasting and hiding,
Security Mode: None (Open), WPA2-PSK(AES), and WPA/WPA2-PSK(TKIP/AES)
WPS Setup,
Wi-Fi MAC Filter,
Wi-Fi Advanced Settings.
DHCP Setup
Enable/disable DHCP server
Configure DHCP IP Pool
Configure DHCP Lease Time
DNS Setup
Support the auto DNS or manual DNS configuration
SIM Card
PIN Management
SIM card Authentication
Backup/
Encryption backup current settings and restore the backup settings
Restore
Diagnosis
Export current diagnosis results and operation logs
Statistics
Link Status (LAN/Wi-Fi Connected Devices)
Transmit / receive traffic in packets
Up Time
Multi-APN
3
VPN
PPTP/L2TP/GRE
VPN PASSTHROUGHT
4G status
Signal strength
Network type
Network connection status
Operator name, system mode
SIM card status
Cell lock
Support
Carrier SIM Lock
Support
Work mode
NAT/ Router mode
Device Management

Spec
Description
Software Update
Full image upgrade
Web UI update
TR069 update
TR069
Support HTTP/HTTPS ACS,
Support upload/download the ACS specified file,
Support download configuration file,
Support configure & queries parameters,
Support remote upgrade,
Support cycle monitor
Syslog
Support the syslog function can send the log to the PC via LAN/Wi-Fi
Diagnostics
Support the Ping and trace route and TCPDUMP.
NAT Mode

Spec
Description
NAT
Support NAT by default
Firewall
Can enable or disable the firewall
Router protocol
Static Route
ALG
Support
Wi-Fi Features

Functions
Users can turn on/off WLAN function through Web UI.
Support configuration WLAN functions through Web UI, include: SSID, SSID broadcasting turn on/off, Channel, rate and mode
Support encryption:
None (Open), WPA2-PSK(AES), and WPA/WPA2-PSK(TKIP/AES)
Support WPS
Wi-Fi protocol support:
IEEE 802.11 b/g/n (2.401 – 2.483 GHz)
Wi-Fi max. users: 32
Support SSID broadcasting
Support multi SSID
Support Wi-Fi channel self-adapt and select
Support guest network
