Product Details
Place of Origin: Guangdong
Brand Name: OLAX
Certification: FCC CE
Model Number: MC60
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 280*130*130mm
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
WIFI: |
2T2R 2.4GHz 802. 11b/g/n, 300Mbps |
LTE: |
DL 150Mbps; UL 50Mbps |
Battery: |
5000mAh(optional) |
WIFI Standard: |
802.11b/g/n |
Power Supply: |
12V/1A |
Bands: |
B1/3/5/7/8/20/28ab/38/39/40/41 |
WIFI: |
2T2R 2.4GHz 802. 11b/g/n, 300Mbps |
LTE: |
DL 150Mbps; UL 50Mbps |
Battery: |
5000mAh(optional) |
WIFI Standard: |
802.11b/g/n |
Power Supply: |
12V/1A |
Bands: |
B1/3/5/7/8/20/28ab/38/39/40/41 |

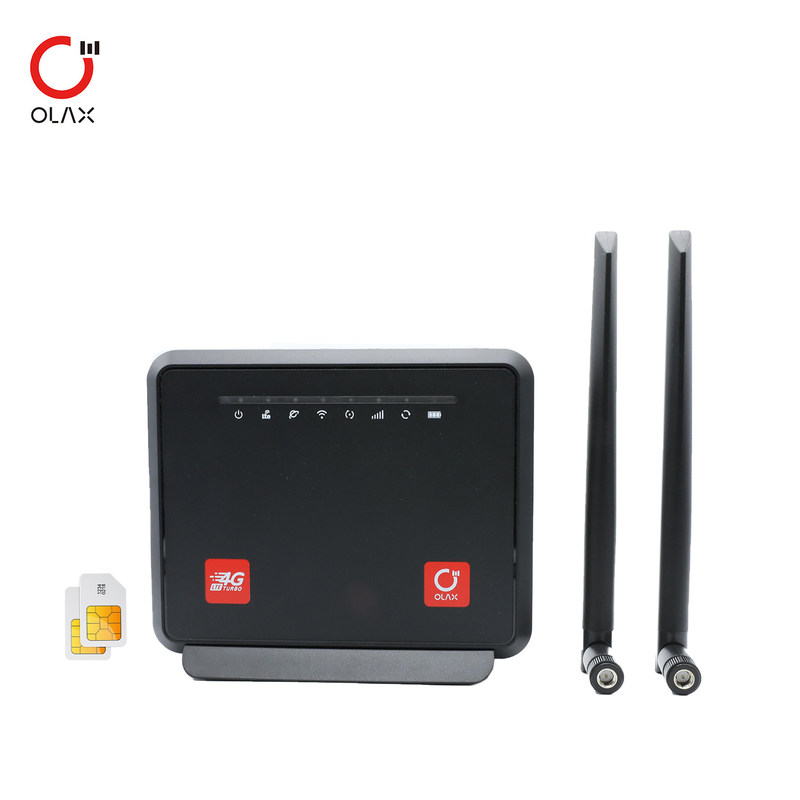

OLAX MC60
4G LTE Router
**Stay Connected, Anytime, Anywhere:**
The OLAX MC60 is your ultimate companion for reliable internet access on the go.
With its unlocked 4G LTE capabilities, you're never far from the information and entertainment you need, no matter where your journey takes you.
**High-Speed Performance:**
Experience lightning-fast download and upload speeds that let you stream, game, and work without the lag.
The MC60's 4G LTE technology ensures that you're always ahead of the curve.
**Versatile Compatibility:**
Designed to work with a wide range of devices, the MC60 is not just a WiFi hotspot—it's a bridge to your digital world.
Connect multiple devices simultaneously and share the high-speed connection with friends and colleagues.
**Easy to Use:**
Setup is a breeze with the user-friendly interface.
Whether you're a tech-savvy user or new to mobile hotspots, the MC60 makes staying connected simple and intuitive.
**Long-lasting Battery:**
Enjoy extended use with the MC60's long-lasting battery, designed to keep you connected for longer periods without the need for constant charging.
**Secure and Private:**
Protect your data with the MC60's advanced security features.
Safeguard your connection with the peace of mind that your information is secure.
**Unlocked Freedom:**
The MC60 is unlocked, giving you the freedom to choose your network provider and plan.
Tailor your connectivity to your needs without being tied down to a single carrier.
| Hardware Parameters | |
| Chipset | ASR1803 |
| CPU frequency | Dual-core :624MHz CORTEX-A53 |
| Memory | LPDDR2 256Mbit |
| Flash | 1Gbit SPI Nand Flash |
| WIFI | 2T2R 2.4GHz 802. 11b/g/n, 300Mbps |
| LTE | DL 150Mbps; UL 50Mbps |
|
Device Interfaces |
1 x SIM Card Slot |
|
1x RJ45 10M/100M LAN Ethernet interfaces |
|
|
1 x reset button |
|
|
1 x WPS button |
|
| 1 x RJ11 interface(optional) | |
|
1 x Power jack |
|
|
1 x Power switch |
|
| Battery | 5000mAh(optional) |
| WIFI Antenna | 2 x 3dBi internal antenna |
| LTE Antenna | 2 x 5dBi external antenna |
| LTE Support Bands | |
| Support band | FDD:B1/3/5/7/8/20/28ab/38/39/40/41 WCDMA/HSPA+:B1/5/8 |
| WIFI Features | |
|
Standard |
802.11b/g/n |
| 11N: 2.4~2.4835GHz | |
| Korea,Japan,ETSI ,FCC channels can be selected | |
| Modulation schemes | OFDM = BPSK, QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Transfer Rate |
HT20: up to 144 Mbps HT40: up to 300 Mbps |
| Software Features | |
|
General |
RFC0791 IP RFC0792 ICMP RFC0793 TCP RFC0826 Ethernet ARP RFC0894 IP over Ethernet RFC0922 Broadcasting Internet Datagrams RFC0950 Internet Standard Subnetting IEEE802.3 Ethertype IEEE802. 1p |
|
IEEE 802. 11b IEEE 802. 11g IEEE 802. 11n IEEE 802. 11h(dfs) IEEE 802. 11e(wmm) IEEE 802. 11k/v/r RFC2516 PPP Over Ethernet (PPPoE) RFC1662 PPP in HDLC-like Framing RFC1332 PPP Internet Protocol Control Protocol RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks IPoE (a.k.a IP over Ethernet over AAL5) DHCP server ,client NAT,NAPT and ALG DMZ and Port forwarding(Virtual server) Logs and statistics TR-069 remote management Flexible and secure SPI Firewall IP filtering and MAC filtering URL filter DDNS QOS Flow Control IPV6 Static route SNTP Date/time update from Internet Time Server WEB GUI Embedded AP with 1 SSIDs Wireless site survey Wireless ACL WPS Separate authentication for each SSID Wmf AutoChannel BSD WPA3/SAE Security Multiple wan and 802. 11q vlan Bridge Ping Diagnostics and Traceroute Diagnostics/Speed Test TR069 VOLTE/CS SIP Proxy(optional) Codec: G711& G722& G723 & G729 (optional) Fax T.38 &V. 17&&V.34&&V. 152 (optional) VAD (Voice Activity Detection) (optional) Silence suppression(optional) CNG (Comfort Noise Generation) (optional) Supports G. 168 (echo cancellation) (optional) RFC3261 (optional) RFC2833 &inbound(optional) RFC4028 (optional) RFC3711 (optional) RFC3550 (optional) RFC3960 (optional) RFC5009 (optional) RFC 3711 (optional) RFC 4568 (optional) SMS USSD |
|
Environment Requirement |
|
| Operating Temperature | 0°C~40°C |
| Storage Temperature |
-20°C ~ 90°C |
| Operating Humidity | 5%~95% (typical) |
| Power Supply | 12V/1A |
|
EMC/Safety |
|
| Regulation Compliance | CE FCC |
| Safety Regulations | UL |
| Green Standard |
RoHS |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
