Product Details
Place of Origin: GUAGNDONG
Brand Name: Olax
Certification: CE, ROHS
Model Number: MC50 pro
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 20pcs/carton
Delivery Time: 10000pcs/month
Payment Terms: Western Union, T/T, , D/P
Supply Ability: 10000pcs per day
Standards And Protocols: |
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n |
Product Category: |
CPE Wifi Router |
Type: |
CPE |
CAT4: |
Yes |
Frequency: |
B1/3/5/8/20/38/40/41 WCDMA:B1/5/8 |
Wireless Routers: |
Yes |
Encryption Type: |
WPA2-PSK, WPA-PSK |
Product Name: |
OLAX MC50 Wifi 4g Router Universal 4g Lte Wifi Router 4g Cpe Router With Sim Card Slot |
Standards And Protocols: |
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n |
Product Category: |
CPE Wifi Router |
Type: |
CPE |
CAT4: |
Yes |
Frequency: |
B1/3/5/8/20/38/40/41 WCDMA:B1/5/8 |
Wireless Routers: |
Yes |
Encryption Type: |
WPA2-PSK, WPA-PSK |
Product Name: |
OLAX MC50 Wifi 4g Router Universal 4g Lte Wifi Router 4g Cpe Router With Sim Card Slot |

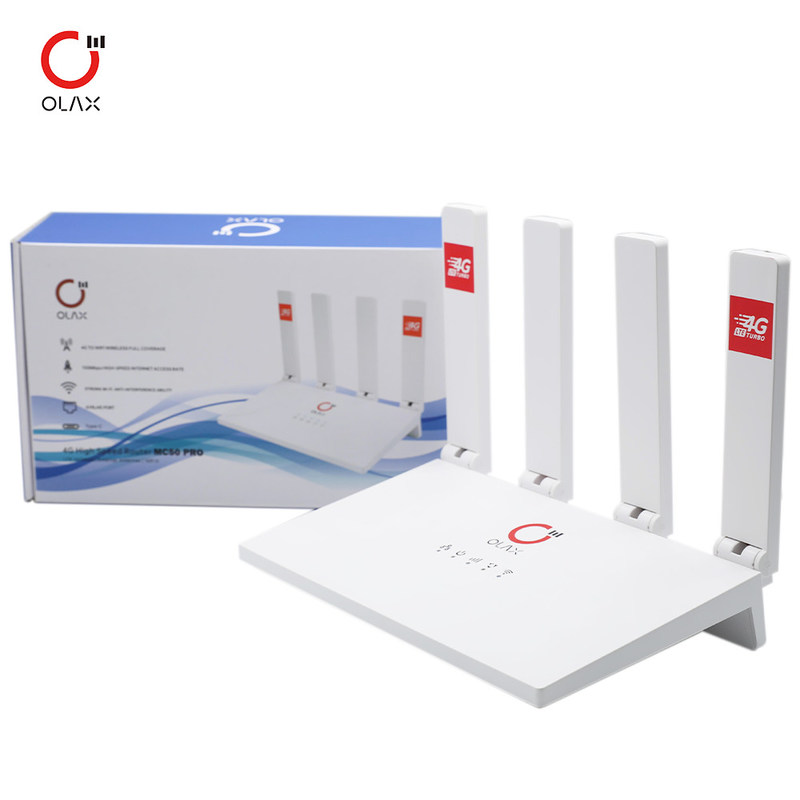

OLAX MC50pro
4G LTE Router
**Your Gateway to Enhanced Network Performance:**
The OLAX MC50 Pro is a powerhouse of connectivity, featuring multiple WAN and LAN ports that allow for versatile and robust networking solutions. Ideal for small businesses, home offices, and power users who demand the best.
**Multiple WAN Ports:**
With support for multiple WAN connections, the MC50 Pro offers load balancing and failover capabilities, ensuring your network is always online and operating at peak performance.
**Multiple LAN Ports:**
Connect multiple devices with ease using the MC50 Pro's LAN ports.
Perfect for setting up a wired network for your office, home, or any environment where stable connections are essential.
**4G/5G Network Support:**
Future-proof your connectivity with support for both 4G and 5G networks.
Experience ultra-fast internet speeds and stay ahead of the curve with the latest mobile technology.
**High-Speed Performance:**
The MC50 Pro is designed to deliver high-speed performance, making it perfect for bandwidth-intensive activities like streaming, gaming, and large file transfers.
**Advanced Security Features:**
Protect your network with robust security features, including WPA/WPA2 encryption and advanced firewall settings, ensuring your data is safe and secure.
**Intuitive User Interface:**
Manage your network with ease through the user-friendly interface.
Monitor data usage, control connected devices, and customize settings to suit your needs.
**Sleek and Compact Design:**
Despite its powerful capabilities, the MC50 Pro boasts a sleek and compact design, making it easy to fit into any workspace or environment.
**What You Get:**
OLAX MC50 Pro with multiple WAN and LAN ports, power adapter, user manual, and our commitment to quality and customer satisfaction.
**Elevate Your Network Experience:**
Don't settle for average network performance.
With the OLAX MC50 Pro, you have a powerful tool to enhance your connectivity and enjoy a seamless online experience.
Purpose
This document provides details of product features, functions and services ,technical
specifications. It is intended to described the general features and functions of products.
History
| Version | Date | Details |
| 1.0 | 2024/1/5 | First version |
1 Product Overview
The cat4 CPE MC50 is a wireless router, which support 2.4G Wi-Fi, providing high-speeding and stable LTE Cat4 network for users at home or in office. The product adopts ASR1803 cellular solution, which confirms to 3GPP Release10 standard.
MC50 key features for user:
l Data service l SMS
l Security service
l Local and OTA maintenance management function
Figure 1-1 ID and Description
2 Features
MC50 mainly supports the following features:
| Item | Description |
| Dimension | 187*116*40mm with External Antenna |
| Weight | About 200g |
| Color | White |
| Technical Standard | Compatible with WCDMA, FDD-LTE ,TDD-LTE Default 802. 11b/g/n |
| Frequency | LTE:B1/3/5/8/38/40/41 WCDMA:B1/5/8 |
| WIFI | 2.4G, 802.11 b/g/n |
| Maximum Data Throughput |
LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
3Technical Specifications
3.1 Hardware Specifications
| Item | Description |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ASR 1803 |
| WiFi Chipset | ASR 5803 |
| WiFi Users | 10 |
| power consumption | <10W |
| Power Voltage | DC12V/800mA or TYPE-C 5V/1000mA |
|
USIM/SIM |
4FF Nano SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
| LED | SYSTEM/WiFi Indication LED , LTE/Internet Status Interface Status LED ,ETH/Signal Strength LED |
| Antenna | internal WIFI antenna;2 internal LTE antenna; 2 external antenna for optional |
| Buttons | Reset/WPS |
| Ethernet | 1LAN, 10BaseT/100Base/ automatic adaptive port |
| Reset | Pinhole |
| ESD | Contact±8KV ,Air± 10KV |
3.2 Software Specification
| Item | Description |
| SW Update | TR069 & FOTA(customized) & Local |
| WIFI Mode | AP/STATION mode |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK |
| SMS | YES |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| Data Statistics | Support |
| SIM Lock | Support |
| HTTP | Support |
| DMZ | Support |
3.3 Environment Requirement
| Item | Description |
|
Operating Temperature |
Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
4 Packing List
| Item | Qty(pcs) | Description | Remarks |
| CPE devices | 1 | Standard | |
| Network cable | 1 | 1m | Standard |
| Gift box | 1 | Customized | Standard |
| User manual | 1 | Customized | Standard |
| Power adapter | 1 | 5V/2A | Standard |
