Product Details
Place of Origin: China
Brand Name: Olax
Certification: CE
Model Number: MC50
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/month
Technical Standard: |
Compatible With WCDMA, FDD-LTE ，TDD-LTE Default 802. 11b/g/n |
Frequency: |
LTE:B1/3/5/8/38/40/41 WCDMA:B1/5/8 |
WIFI: |
2.4G, 802.11 B/g/n |
Maximum Data Throughpu: |
LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
Ethernet: |
1LAN, 10BaseT/100Base/ Automatic Adaptive Port |
Technical Standard: |
Compatible With WCDMA, FDD-LTE ，TDD-LTE Default 802. 11b/g/n |
Frequency: |
LTE:B1/3/5/8/38/40/41 WCDMA:B1/5/8 |
WIFI: |
2.4G, 802.11 B/g/n |
Maximum Data Throughpu: |
LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
Ethernet: |
1LAN, 10BaseT/100Base/ Automatic Adaptive Port |

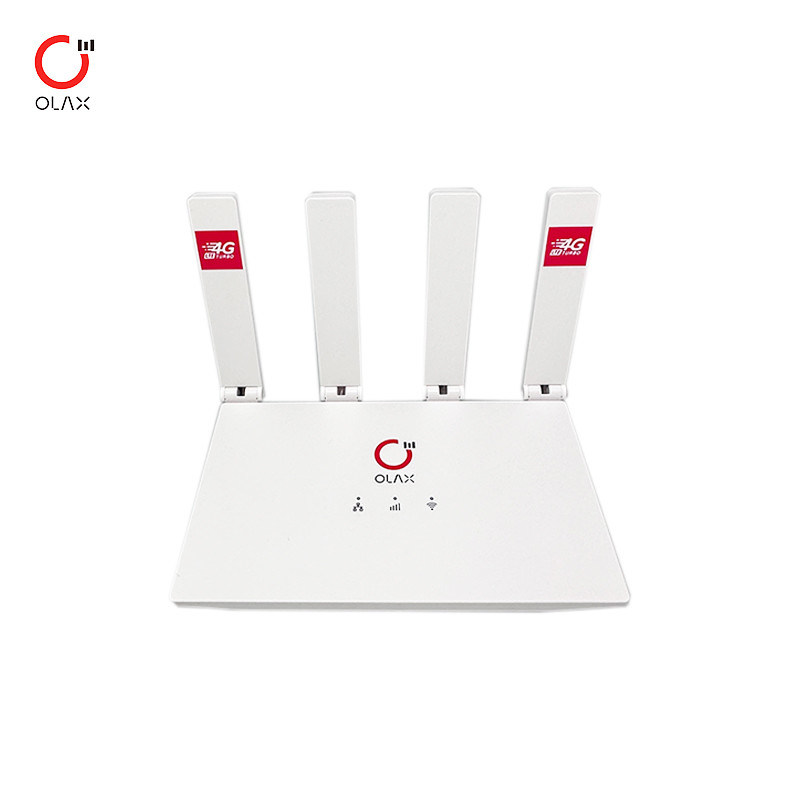

OLAX MC50
4G LTE Router
Product Description:
The OLAX MC50 Wifi 4g Router is equipped with a CPE WiFi Antenna, which enhances the router's wireless signal coverage. This feature allows for an uninterrupted internet connection, even in remote areas. Additionally, the CPE Wifi Router comes with an external antenna, which further boosts the router's signal strength.
The OLAX MC50 Wifi 4g Router is a CPE Wireless Network Router, which means it can provide internet access to devices wirelessly. This feature eliminates the need for a wired connection, which makes the device highly convenient and portable.
The OLAX MC50 Wifi 4g Router is designed with advanced features such as Voip, Firewall, QoS, and VPN. These features make it easy to manage internet traffic and ensure a secure connection. The router's QoS feature prioritizes internet traffic, making it ideal for bandwidth-intensive applications such as video streaming and online gaming.
The OLAX MC50 Wifi 4g Router boasts an internet access rate of 150Mbps, which makes it an excellent choice for online activities that require high-speed internet such as video conferencing and file sharing.
The OLAX MC50 Wifi 4g Router supports Wi-Fi 802.11b, Wi-Fi 802.11g, and Wi-Fi 802.11n standards and protocols, which means it is compatible with a wide range of devices. This feature makes it easy to connect to the internet, regardless of the device you are using.
In conclusion, the OLAX MC50 Wifi 4g Router is the perfect solution for all your internet needs. Whether you're at home, in the office, or on-the-go, this router with CPE WiFi Antenna and external antenna provides an uninterrupted internet connection with advanced features such as Voip, Firewall, QoS, and VPN. With an internet access rate of 150Mbps, the device is perfect for high-speed internet activities such as video conferencing and file sharing.
Purpose
This document provides details of product features, functions and services,technical specifications.
It is intended to described the general features and functions of products.
The cat4 CPE MC50 is a wireless router, which support 2.4G Wi-Fi, providing high-speeding and stable LTE Cat4 network for users at home or in office.
The product adopts ASR1803 cellular solution, which confirms to 3GPP Release10 standard.
MC50 key features for user:
l Data service l SMS
l Security service
l Local and OTA maintenance management function
MC50 mainly supports the following features:
| Item | Description |
| Dimension | 187*116*40mm with External Antenna |
| Weight | About 200g |
| Color | White |
| Technical Standard | Compatible with WCDMA, FDD-LTE ,TDD-LTE Default 802. 11b/g/n |
| Frequency | LTE:B1/3/5/8/38/40/41 WCDMA:B1/5/8 |
| WIFI | 2.4G, 802.11 b/g/n |
| Maximum Data Throughput |
LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps |
3Technical Specifications
3.1 Hardware Specifications
| Item | Description |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ASR 1803 |
| WiFi Chipset | ASR 5803 |
| WiFi Users | 10 |
| power consumption | <10W |
| Power Voltage | DC12V/800mA or TYPE-C 5V/1000mA |
|
USIM/SIM |
4FF Nano SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
| LED | SYSTEM/WiFi Indication LED , LTE/Internet Status Interface Status LED ,ETH/Signal Strength LED |
| Antenna | internal WIFI antenna;2 internal LTE antenna; 2 external antenna for optional |
| Buttons | Reset/WPS |
| Ethernet | 1LAN, 10BaseT/100Base/ automatic adaptive port |
| Reset | Pinhole |
| ESD | Contact±8KV ,Air± 10KV |
3.2 Software Specification
| Item | Description |
| SW Update | TR069 & FOTA(customized) & Local |
| WIFI Mode | AP/STATION mode |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK |
| SMS | YES |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| Data Statistics | Support |
| SIM Lock | Support |
| HTTP | Support |
| DMZ | Support |
3.3 Environment Requirement
| Item | Description |
|
Operating Temperature |
Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
FAQ
1. who are we?
Our company name is Olax.We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Eastern Europe(15.00%),Southeast Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(4.00%),Mid East(4.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4/5G Wireless CPE Router,4G 5G USB Modem Dongle,4G MIFI,4G Pocket wifi Router,5G Router
4. why should you buy from us not from other suppliers?
we have been focus on the Wireless network products for over 20 years. We have stable Production Ability to support OEM Products. We believe Quality is the life of company.We are still constantly updating our technology level to provide customized services for different customer groups.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Mostly in English,Chinese
